UI Module

The UI Module provides a collection of user interface components and page structures for the Property Tycoon game. It handles rendering visual elements like buttons and input fields, manages different game screens (pages), and processes user interactions (clicks, key presses) related to the UI. It relies heavily on the Pygame library for drawing and event handling, and uses Font_Manager and Sound_Manager for assets.

High-Level Design

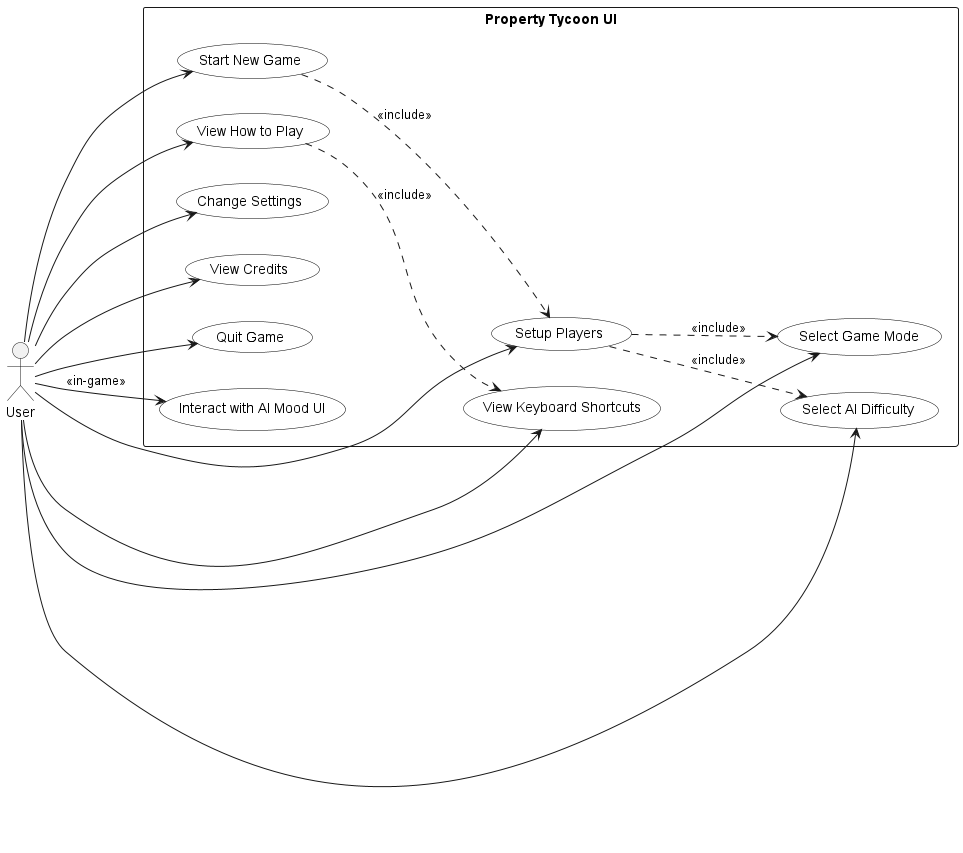

Use Case Diagram

This diagram shows the main interactions a user can have with the UI system.

@startuml skinparam usecase { BackgroundColor White BorderColor Black } left to right direction actor User rectangle "Property Tycoon UI" { usecase "Start New Game" as Start usecase "View How to Play" as HowTo usecase "View Keyboard Shortcuts" as Shortcuts usecase "Change Settings" as Settings usecase "Setup Players" as Setup usecase "Select Game Mode" as GameMode usecase "Select AI Difficulty" as AIDiff usecase "View Credits" as Credits usecase "Quit Game" as Quit usecase "Interact with AI Mood UI" as AIMood User --> Start User --> HowTo User --> Shortcuts User --> Settings User --> Setup User --> GameMode User --> AIDiff User --> Credits User --> Quit User --> AIMood : <<in-game>> Start ..> Setup : <<include>> Setup ..> AIDiff : <<include>> Setup ..> GameMode : <<include>> HowTo ..> Shortcuts : <<include>> } @enduml

UI Module Use Cases

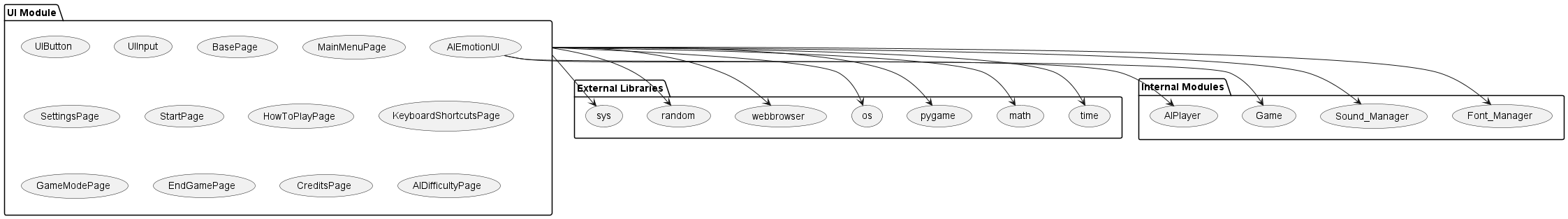

Dependency Diagram

Shows the primary external libraries and internal modules the UI components depend on.

@startuml package "UI Module" { (UIButton) (UIInput) (BasePage) (MainMenuPage) (SettingsPage) (StartPage) (HowToPlayPage) (KeyboardShortcutsPage) (GameModePage) (EndGamePage) (CreditsPage) (AIDifficultyPage) (AIEmotionUI) } package "External Libraries" { (pygame) (os) (webbrowser) (random) (sys) (time) (math) } package "Internal Modules" { (Font_Manager) (Sound_Manager) (Game) (AIPlayer) } (UI Module) --> (pygame) (UI Module) --> (os) (UI Module) --> (webbrowser) (UI Module) --> (random) (UI Module) --> (sys) (UI Module) --> (time) (UI Module) --> (math) (UI Module) --> (Font_Manager) (UI Module) --> (Sound_Manager) (AIEmotionUI) --> (Game) (AIEmotionUI) --> (AIPlayer) @enduml

UI Module Dependencies

Detailed Design

Class Diagrams

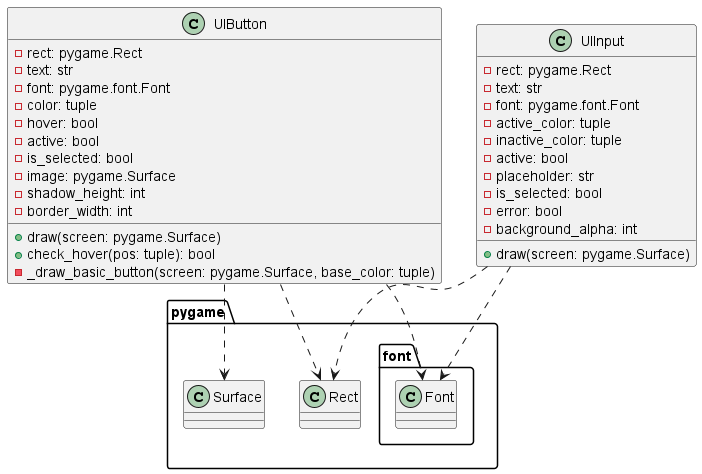

Core UI Elements

class UIButton { - rect: pygame.Rect - text: str - font: pygame.font.Font - color: tuple - hover: bool - active: bool - is_selected: bool - image: pygame.Surface - shadow_height: int - border_width: int + draw(screen: pygame.Surface) + check_hover(pos: tuple): bool - _draw_basic_button(screen: pygame.Surface, base_color: tuple) } class UIInput { - rect: pygame.Rect - text: str - font: pygame.font.Font - active_color: tuple - inactive_color: tuple - active: bool - placeholder: str - is_selected: bool - error: bool - background_alpha: int + draw(screen: pygame.Surface) } UIButton ..> pygame.Rect UIButton ..> pygame.font.Font UIButton ..> pygame.Surface UIInput ..> pygame.Rect UIInput ..> pygame.font.Font

Core UI Elements Class Diagram

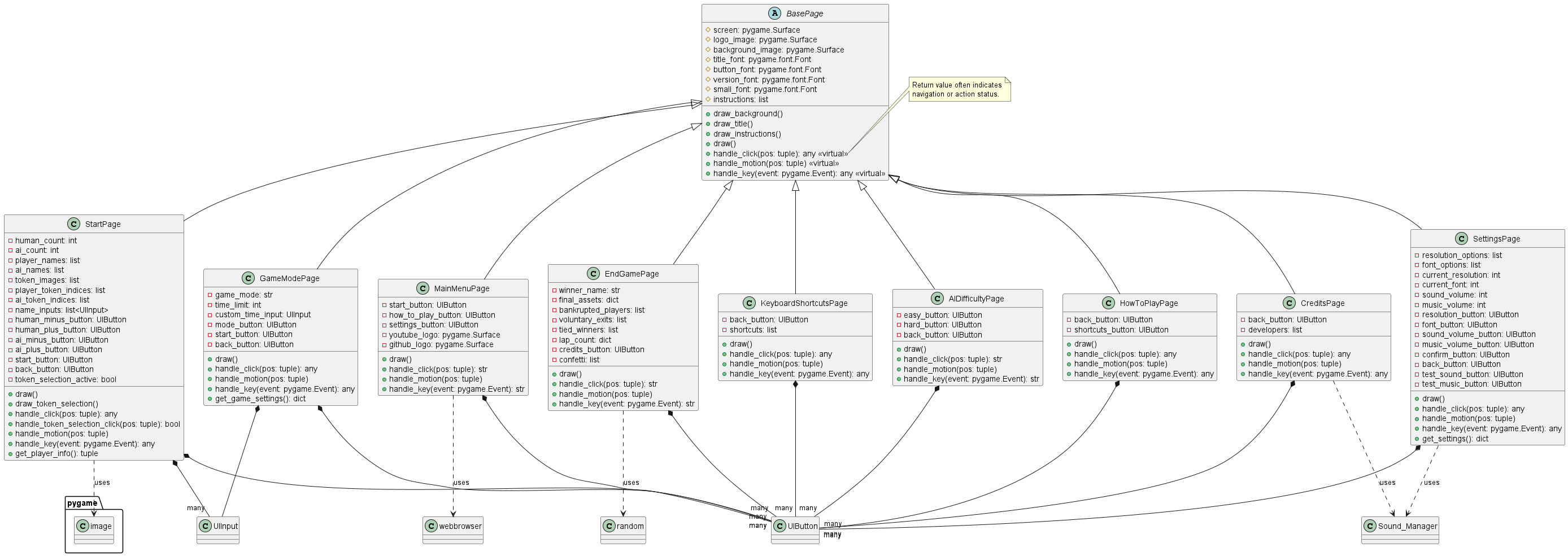

Page Hierarchy

abstract class BasePage { # screen: pygame.Surface # logo_image: pygame.Surface # background_image: pygame.Surface # title_font: pygame.font.Font # button_font: pygame.font.Font # version_font: pygame.font.Font # small_font: pygame.font.Font # instructions: list + draw_background() + draw_title() + draw_instructions() + draw() + handle_click(pos: tuple): any <<virtual>> + handle_motion(pos: tuple) <<virtual>> + handle_key(event: pygame.Event): any <<virtual>> } note right of BasePage::handle_click Return value often indicates navigation or action status. end note class MainMenuPage extends BasePage { - start_button: UIButton - how_to_play_button: UIButton - settings_button: UIButton - youtube_logo: pygame.Surface - github_logo: pygame.Surface + draw() + handle_click(pos: tuple): str + handle_motion(pos: tuple) + handle_key(event: pygame.Event): str } class SettingsPage extends BasePage { - resolution_options: list - font_options: list - current_resolution: int - current_font: int - sound_volume: int - music_volume: int - resolution_button: UIButton - font_button: UIButton - sound_volume_button: UIButton - music_volume_button: UIButton - confirm_button: UIButton - back_button: UIButton - test_sound_button: UIButton - test_music_button: UIButton + draw() + handle_click(pos: tuple): any + handle_motion(pos: tuple) + handle_key(event: pygame.Event): any + get_settings(): dict } class StartPage extends BasePage { - human_count: int - ai_count: int - player_names: list - ai_names: list - token_images: list - player_token_indices: list - ai_token_indices: list - name_inputs: list<UIInput> - human_minus_button: UIButton - human_plus_button: UIButton - ai_minus_button: UIButton - ai_plus_button: UIButton - start_button: UIButton - back_button: UIButton - token_selection_active: bool + draw() + draw_token_selection() + handle_click(pos: tuple): any + handle_token_selection_click(pos: tuple): bool + handle_motion(pos: tuple) + handle_key(event: pygame.Event): any + get_player_info(): tuple } class HowToPlayPage extends BasePage { - back_button: UIButton - shortcuts_button: UIButton + draw() + handle_click(pos: tuple): any + handle_motion(pos: tuple) + handle_key(event: pygame.Event): any } class KeyboardShortcutsPage extends BasePage { - back_button: UIButton - shortcuts: list + draw() + handle_click(pos: tuple): any + handle_motion(pos: tuple) + handle_key(event: pygame.Event): any } class GameModePage extends BasePage { - game_mode: str - time_limit: int - custom_time_input: UIInput - mode_button: UIButton - start_button: UIButton - back_button: UIButton + draw() + handle_click(pos: tuple): any + handle_motion(pos: tuple) + handle_key(event: pygame.Event): any + get_game_settings(): dict } class EndGamePage extends BasePage { - winner_name: str - final_assets: dict - bankrupted_players: list - voluntary_exits: list - tied_winners: list - lap_count: dict - credits_button: UIButton - confetti: list + draw() + handle_click(pos: tuple): str + handle_motion(pos: tuple) + handle_key(event: pygame.Event): str } class CreditsPage extends BasePage { - back_button: UIButton - developers: list + draw() + handle_click(pos: tuple): any + handle_motion(pos: tuple) + handle_key(event: pygame.Event): any } class AIDifficultyPage extends BasePage { - easy_button: UIButton - hard_button: UIButton - back_button: UIButton + draw() + handle_click(pos: tuple): str + handle_motion(pos: tuple) + handle_key(event: pygame.Event): str } ' PlayerSelectPage also exists but seems less central than StartPage ' class PlayerSelectPage extends BasePage { ... } MainMenuPage *-- "many" UIButton SettingsPage *-- "many" UIButton StartPage *-- "many" UIButton StartPage *-- "many" UIInput GameModePage *-- "many" UIButton GameModePage *-- UIInput EndGamePage *-- "many" UIButton HowToPlayPage *-- "many" UIButton KeyboardShortcutsPage *-- "many" UIButton CreditsPage *-- "many" UIButton AIDifficultyPage *-- "many" UIButton MainMenuPage ..> webbrowser : uses SettingsPage ..> Sound_Manager : uses StartPage ..> pygame.image : uses EndGamePage ..> random : uses CreditsPage ..> Sound_Manager : uses

Page Hierarchy Class Diagram

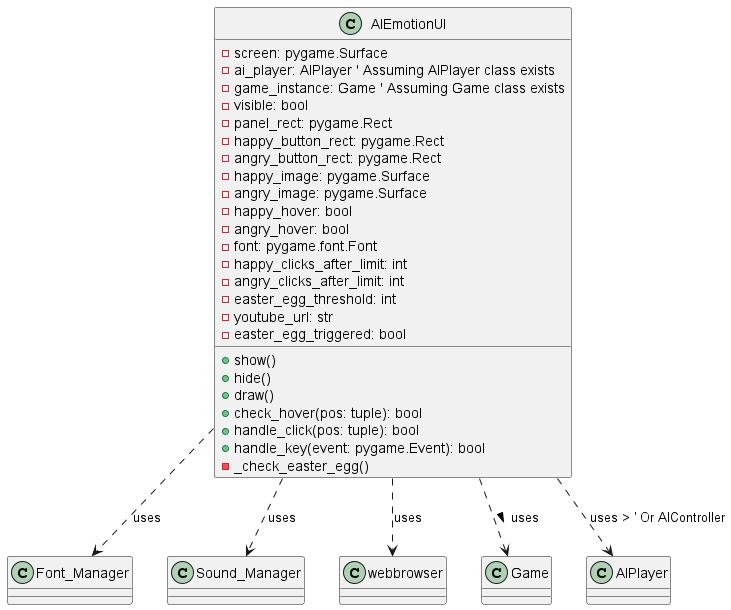

AI Emotion UI

class AIEmotionUI { - screen: pygame.Surface - ai_player: AIPlayer ' Assuming AIPlayer class exists - game_instance: Game ' Assuming Game class exists - visible: bool - panel_rect: pygame.Rect - happy_button_rect: pygame.Rect - angry_button_rect: pygame.Rect - happy_image: pygame.Surface - angry_image: pygame.Surface - happy_hover: bool - angry_hover: bool - font: pygame.font.Font - happy_clicks_after_limit: int - angry_clicks_after_limit: int - easter_egg_threshold: int - youtube_url: str - easter_egg_triggered: bool + show() + hide() + draw() + check_hover(pos: tuple): bool + handle_click(pos: tuple): bool + handle_key(event: pygame.Event): bool - _check_easter_egg() } AIEmotionUI ..> Font_Manager : uses AIEmotionUI ..> Sound_Manager : uses AIEmotionUI ..> webbrowser : uses AIEmotionUI ..> "Game" : uses > AIEmotionUI ..> "AIPlayer" : uses > ' Or AIController

AI Emotion UI Class Diagram

Sequence Diagrams

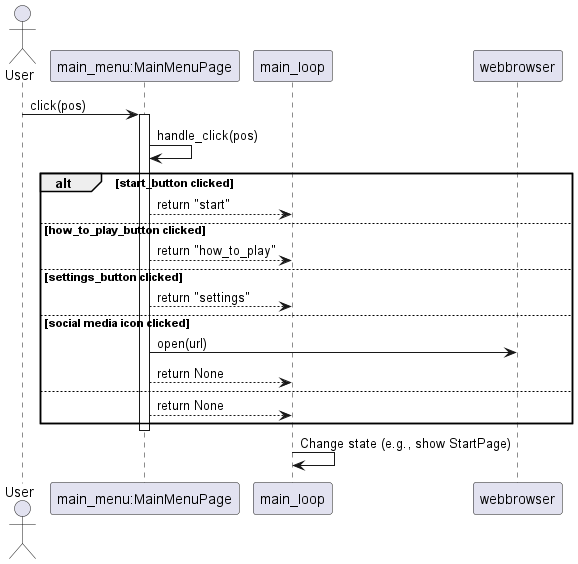

Main Menu Navigation

actor User participant "main_menu:MainMenuPage" as MainMenu participant "main_loop" as Loop User -> MainMenu : click(pos) activate MainMenu MainMenu -> MainMenu : handle_click(pos) alt start_button clicked MainMenu --> Loop : return "start" else how_to_play_button clicked MainMenu --> Loop : return "how_to_play" else settings_button clicked MainMenu --> Loop : return "settings" else social media icon clicked MainMenu -> webbrowser : open(url) MainMenu --> Loop : return None else MainMenu --> Loop : return None end deactivate MainMenu Loop -> Loop : Change state (e.g., show StartPage)

Sequence Diagram: Main Menu Navigation

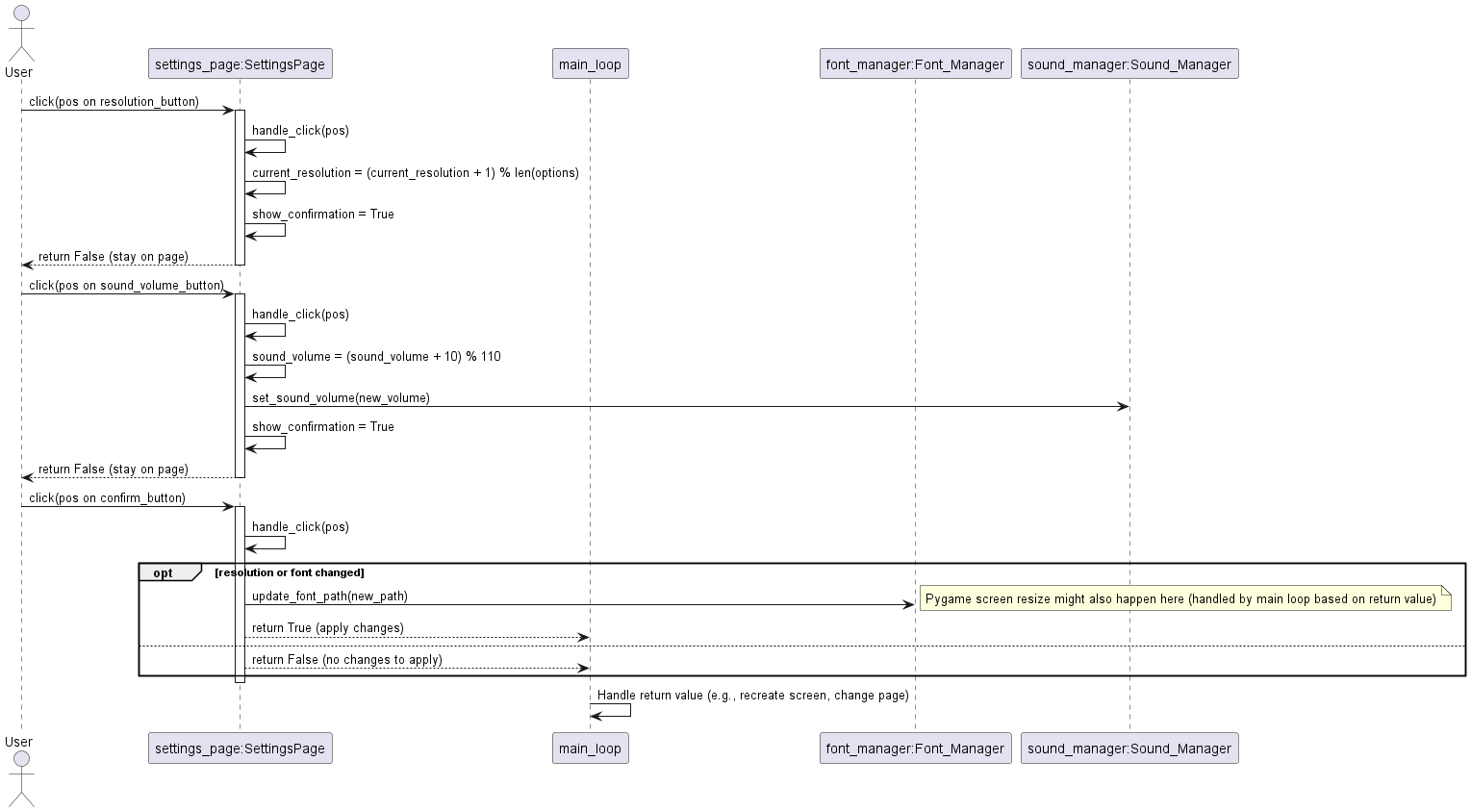

Changing a Setting

actor User participant "settings_page:SettingsPage" as Settings participant "main_loop" as Loop participant "font_manager:Font_Manager" as FM participant "sound_manager:Sound_Manager" as SM User -> Settings : click(pos on resolution_button) activate Settings Settings -> Settings : handle_click(pos) Settings -> Settings : current_resolution = (current_resolution + 1) % len(options) Settings -> Settings : show_confirmation = True Settings --> User : return False (stay on page) deactivate Settings User -> Settings : click(pos on sound_volume_button) activate Settings Settings -> Settings : handle_click(pos) Settings -> Settings : sound_volume = (sound_volume + 10) % 110 Settings -> SM : set_sound_volume(new_volume) Settings -> Settings : show_confirmation = True Settings --> User : return False (stay on page) deactivate Settings User -> Settings : click(pos on confirm_button) activate Settings Settings -> Settings : handle_click(pos) opt resolution or font changed Settings -> FM : update_font_path(new_path) note right: Pygame screen resize might also happen here (handled by main loop based on return value) Settings --> Loop : return True (apply changes) else Settings --> Loop : return False (no changes to apply) end deactivate Settings Loop -> Loop : Handle return value (e.g., recreate screen, change page)

Sequence Diagram: Changing a Setting

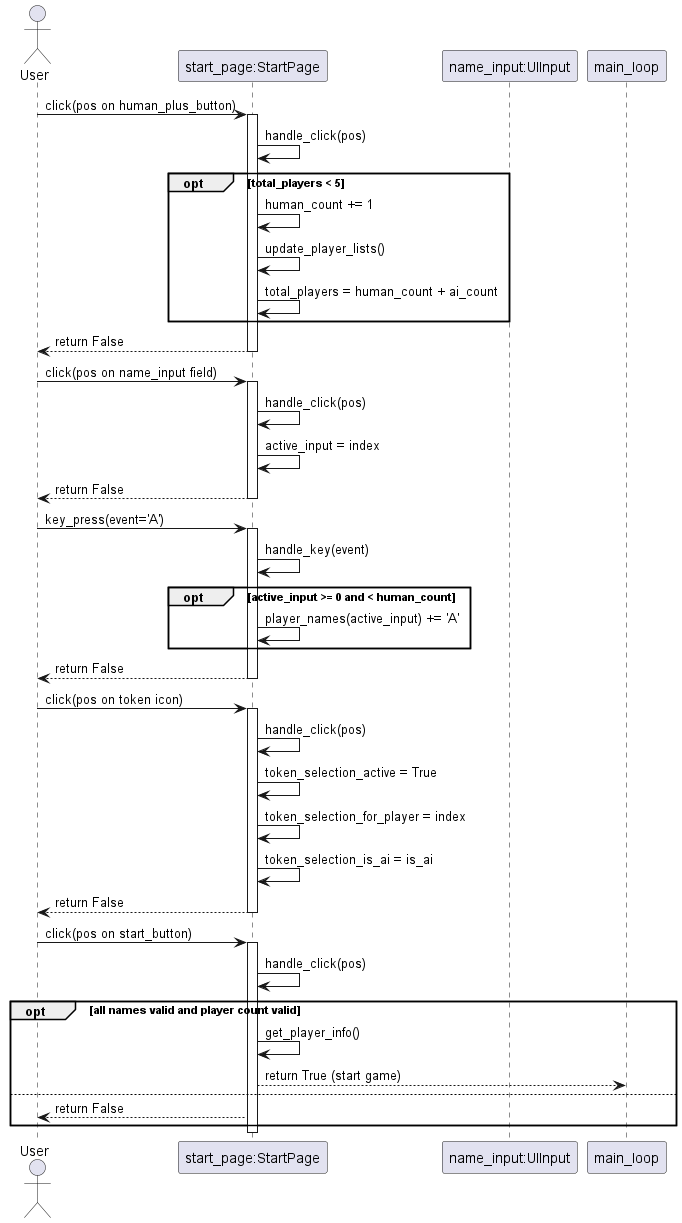

Player Setup (StartPage)

actor User participant "start_page:StartPage" as StartPage participant "name_input:UIInput" as Input participant "main_loop" as Loop User -> StartPage : click(pos on human_plus_button) activate StartPage StartPage -> StartPage : handle_click(pos) opt total_players < 5 StartPage -> StartPage : human_count += 1 StartPage -> StartPage : update_player_lists() StartPage -> StartPage : total_players = human_count + ai_count end StartPage --> User : return False deactivate StartPage User -> StartPage : click(pos on name_input field) activate StartPage StartPage -> StartPage : handle_click(pos) StartPage -> StartPage : active_input = index StartPage --> User : return False deactivate StartPage User -> StartPage : key_press(event='A') activate StartPage StartPage -> StartPage : handle_key(event) opt active_input >= 0 and < human_count StartPage -> StartPage : player_names(active_input) += 'A' end StartPage --> User : return False deactivate StartPage User -> StartPage : click(pos on token icon) activate StartPage StartPage -> StartPage : handle_click(pos) StartPage -> StartPage : token_selection_active = True StartPage -> StartPage : token_selection_for_player = index StartPage -> StartPage : token_selection_is_ai = is_ai StartPage --> User : return False deactivate StartPage ' (Token selection UI is now drawn) User -> StartPage : click(pos on start_button) activate StartPage StartPage -> StartPage : handle_click(pos) opt all names valid and player count valid StartPage -> StartPage : get_player_info() StartPage --> Loop : return True (start game) else StartPage --> User : return False end deactivate StartPage

Sequence Diagram: Player Setup Interaction

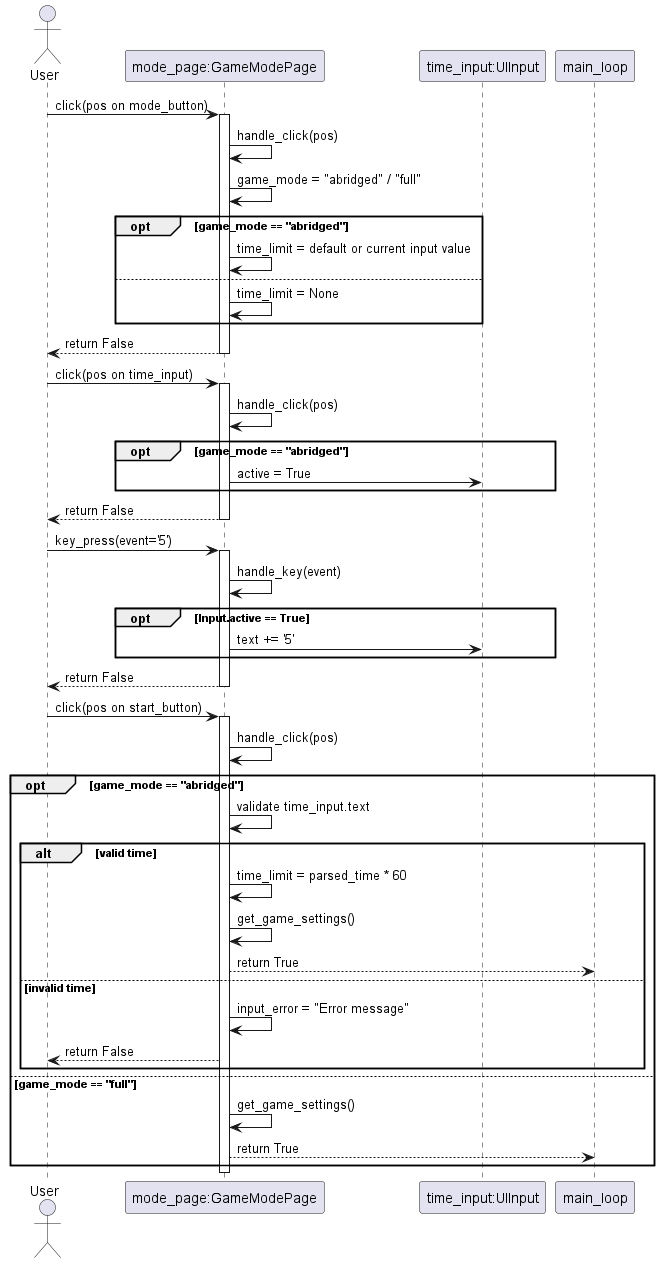

Game Mode Selection

actor User participant "mode_page:GameModePage" as ModePage participant "time_input:UIInput" as Input participant "main_loop" as Loop User -> ModePage : click(pos on mode_button) activate ModePage ModePage -> ModePage : handle_click(pos) ModePage -> ModePage : game_mode = "abridged" / "full" opt game_mode == "abridged" ModePage -> ModePage : time_limit = default or current input value else ModePage -> ModePage : time_limit = None end ModePage --> User : return False deactivate ModePage User -> ModePage : click(pos on time_input) activate ModePage ModePage -> ModePage : handle_click(pos) opt game_mode == "abridged" ModePage -> Input : active = True end ModePage --> User : return False deactivate ModePage User -> ModePage : key_press(event='5') activate ModePage ModePage -> ModePage : handle_key(event) opt Input.active == True ModePage -> Input : text += '5' end ModePage --> User : return False deactivate ModePage User -> ModePage : click(pos on start_button) activate ModePage ModePage -> ModePage : handle_click(pos) opt game_mode == "abridged" ModePage -> ModePage : validate time_input.text alt valid time ModePage -> ModePage : time_limit = parsed_time * 60 ModePage -> ModePage : get_game_settings() ModePage --> Loop : return True else invalid time ModePage -> ModePage : input_error = "Error message" ModePage --> User : return False end else game_mode == "full" ModePage -> ModePage : get_game_settings() ModePage --> Loop : return True end deactivate ModePage

Sequence Diagram: Game Mode Selection

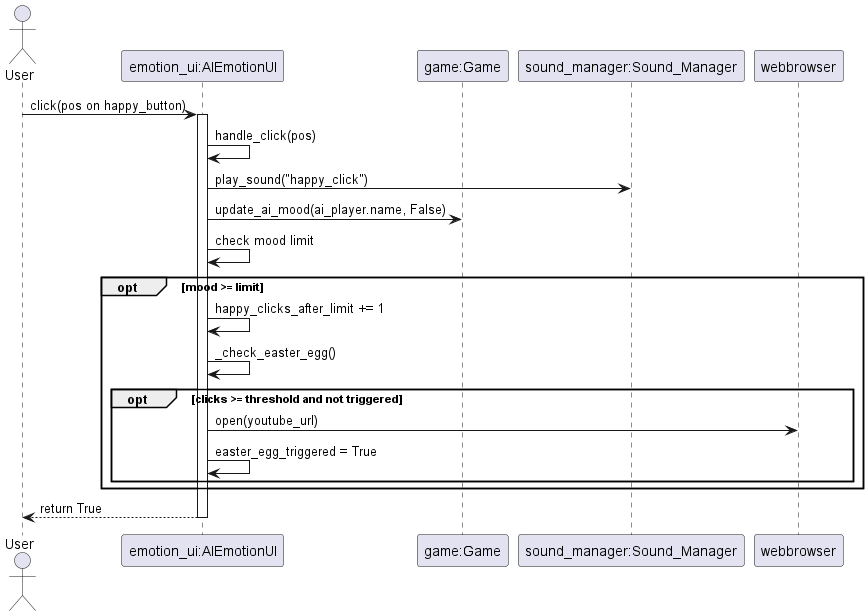

AI Mood Interaction

actor User participant "emotion_ui:AIEmotionUI" as EmotionUI participant "game:Game" as Game participant "sound_manager:Sound_Manager" as SM participant "webbrowser" as WB User -> EmotionUI : click(pos on happy_button) activate EmotionUI EmotionUI -> EmotionUI : handle_click(pos) EmotionUI -> SM : play_sound("happy_click") EmotionUI -> Game : update_ai_mood(ai_player.name, False) EmotionUI -> EmotionUI : check mood limit opt mood >= limit EmotionUI -> EmotionUI : happy_clicks_after_limit += 1 EmotionUI -> EmotionUI : _check_easter_egg() opt clicks >= threshold and not triggered EmotionUI -> WB : open(youtube_url) EmotionUI -> EmotionUI : easter_egg_triggered = True end end EmotionUI --> User : return True deactivate EmotionUI

Sequence Diagram: AI Mood Interaction

Key Classes Overview

  • UIButton: A standard clickable button with text or image, hover effects, and active/inactive states.

  • UIInput: A text input field allowing user text entry, with active/inactive states and placeholder text.

  • BasePage: The foundation for all game screens, providing common drawing logic (background, title) and defining the interface for handling events.

  • MainMenuPage: The initial screen with options to start, view instructions, or change settings. Includes social media links.

  • SettingsPage: Allows modification of screen resolution, font, and sound/music volume. Interacts with Sound_Manager and Font_Manager.

  • StartPage: Handles the setup of human and AI players, including name entry and token selection. Manages player counts and associated data.

  • HowToPlayPage: Displays basic game instructions.

  • KeyboardShortcutsPage: Displays a list of keyboard shortcuts for game actions.

  • GameModePage: Allows selection between a full game or an abridged (timed) game, including setting a time limit.

  • EndGamePage: Shown after the game concludes, displaying the winner, final scores, and options to play again or quit. Includes a confetti effect.

  • CreditsPage: Displays the list of developers and special thanks.

  • AIDifficultyPage: Allows the user to select the difficulty level for AI opponents.

  • AIEmotionUI: An in-game UI element specifically for interacting with an AI player’s mood, featuring visual feedback and an easter egg.

API Documentation

class src.UI.AIDifficultyPage(instructions=None)[source]

Bases: BasePage

draw()[source]
handle_click(pos)[source]
handle_key(event)[source]
handle_motion(pos)[source]
class src.UI.AIEmotionUI(screen, ai_player, game_instance)[source]

Bases: object

check_hover(pos)[source]
draw()[source]
handle_click(pos)[source]
handle_key(event)[source]
hide()[source]
show()[source]
class src.UI.BasePage(instructions=None)[source]

Bases: object

draw()[source]
draw_background()[source]
draw_instructions()[source]
draw_title()[source]
class src.UI.CreditsPage(instructions=None)[source]

Bases: BasePage

draw()[source]
handle_click(pos)[source]
handle_key(event)[source]
handle_motion(pos)[source]
class src.UI.EndGamePage(winner_name, final_assets=None, bankrupted_players=None, voluntary_exits=None, tied_winners=None, lap_count=None)[source]

Bases: BasePage

draw()[source]
handle_click(pos)[source]
handle_key(event)[source]
handle_motion(pos)[source]
class src.UI.GameModePage(instructions=None)[source]

Bases: BasePage

draw()[source]
get_game_settings()[source]
handle_click(pos)[source]
handle_key(event)[source]
handle_motion(pos)[source]
class src.UI.HowToPlayPage(instructions=None)[source]

Bases: BasePage

draw()[source]
handle_click(pos)[source]
handle_key(event)[source]
handle_motion(pos)[source]
class src.UI.KeyboardShortcutsPage(instructions=None)[source]

Bases: BasePage

draw()[source]
handle_click(pos)[source]
handle_key(event)[source]
handle_motion(pos)[source]
class src.UI.MainMenuPage(instructions=None)[source]

Bases: BasePage

draw()[source]
handle_click(pos)[source]
handle_key(event)[source]
handle_motion(pos)[source]
class src.UI.PlayerSelectPage[source]

Bases: BasePage

draw()[source]
get_player_info()[source]
handle_click(pos)[source]
handle_key(event)[source]
handle_motion(pos)[source]
class src.UI.SettingsPage(instructions=None)[source]

Bases: BasePage

CONFIRMATION_DURATION = 5000
draw()[source]
get_settings()[source]
handle_click(pos)[source]
handle_key(event)[source]
handle_motion(pos)[source]
class src.UI.StartPage(instructions=None)[source]

Bases: BasePage

draw()[source]
draw_token_selection()[source]
generate_unique_ai_name()[source]
get_player_info()[source]
handle_click(pos)[source]
handle_key(event)[source]
handle_motion(pos)[source]
handle_token_selection_click(pos)[source]
update_player_lists()[source]
class src.UI.UIButton(rect, text, font, color=(128, 0, 32))[source]

Bases: object

check_hover(pos)[source]
draw(screen)[source]
class src.UI.UIInput(rect, text, font, active_color=(128, 0, 32), inactive_color=(128, 128, 128))[source]

Bases: object

draw(screen)[source]
src.UI.get_window_size()[source]
