Player Module

This module defines the Player class, representing a participant in the game. It stores player-specific data like name, money, position, owned properties, and status (e.g., in jail, bankrupt). It also handles player movement animation, visual representation, and interactions related to property ownership and finances. For AI players, it holds a reference to an AI controller.

The Player module provides:

Representation of a player’s state (money, properties, position, jail status, etc.).
Methods for financial transactions (pay, receive, can_afford).
Methods for property management (buy_property, add_property, remove_property, asset calculation).
Methods for handling jail status (add_jail_card, use_jail_card, handle_jail_turn).
Logic for player movement on the board, including animation (move, start_move, update_animation, generate_move_path).
Visual drawing logic (draw_player, load_player_image, create_fallback_token).
Handling of game-ending states like bankruptcy and voluntary exit (handle_bankruptcy, handle_voluntary_exit).
Integration with AI controllers for AI players.

class src.Player.Player(name, player_number=1, is_ai=False, ai_difficulty='easy')[source]

Bases: object

add_jail_card(card_type)[source]

add_property(property)[source]

buy_property(property)[source]

can_afford(amount)[source]

can_build_hotels()[source]

can_build_houses()[source]

create_fallback_token()[source]

draw_player(screen, x, y)[source]

generate_move_path(steps)[source]

get_mortgageable_properties()[source]

get_properties_with_hotels()[source]

get_properties_with_houses()[source]

get_total_assets()[source]

get_total_offset()[source]

get_unmortgageable_properties()[source]

handle_bankruptcy(creditor=None)[source]

handle_jail_turn()[source]

handle_voluntary_exit()[source]

is_animation_complete()[source]

load_player_image()[source]

move(steps)[source]

pay(amount)[source]

receive(amount)[source]

remove_property(property)[source]

set_active(active)[source]

set_winner(winner)[source]

start_move(path)[source]

update_animation()[source]

use_jail_card()[source]

Detailed Design

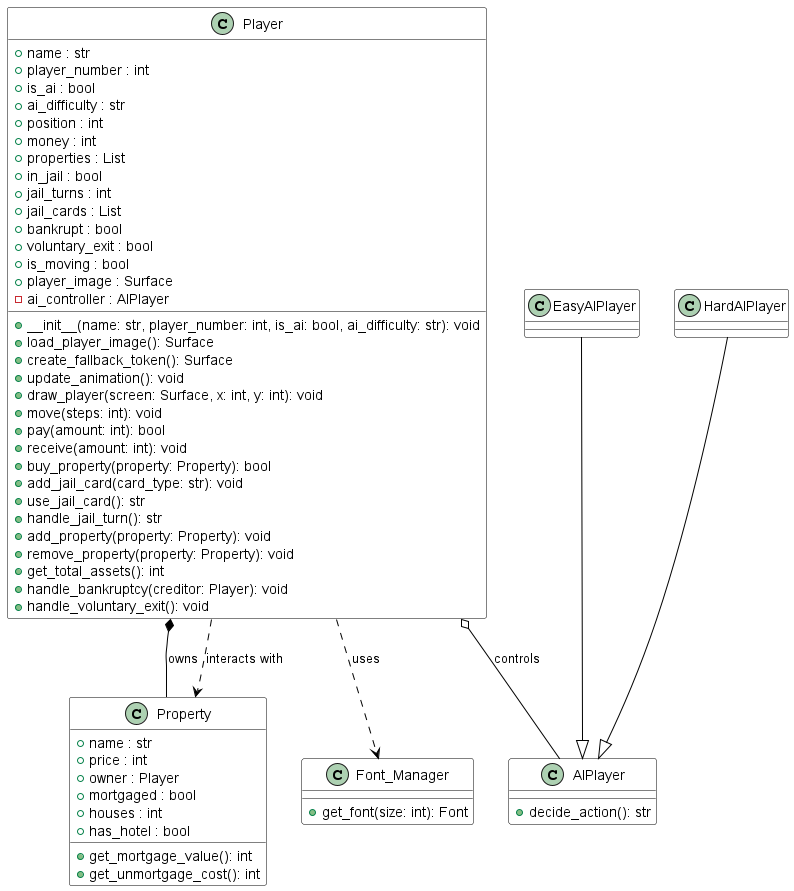

Player Class Diagram

@startuml
skinparam class {
BackgroundColor white
BorderColor black
ArrowColor black
}

class Player {
+ name : str
+ player_number : int
+ is_ai : bool
+ ai_difficulty : str
+ position : int
+ money : int
+ properties : List
+ in_jail : bool
+ jail_turns : int
+ jail_cards : List
+ bankrupt : bool
+ voluntary_exit : bool
+ is_moving : bool
+ player_image : Surface
- ai_controller : AIPlayer

+ __init__(name: str, player_number: int, is_ai: bool, ai_difficulty: str): void
+ load_player_image(): Surface
+ create_fallback_token(): Surface
+ update_animation(): void
+ draw_player(screen: Surface, x: int, y: int): void
+ move(steps: int): void
+ pay(amount: int): bool
+ receive(amount: int): void
+ buy_property(property: Property): bool
+ add_jail_card(card_type: str): void
+ use_jail_card(): str
+ handle_jail_turn(): str
+ add_property(property: Property): void
+ remove_property(property: Property): void
+ get_total_assets(): int
+ handle_bankruptcy(creditor: Player): void
+ handle_voluntary_exit(): void
}

class Property {
+ name : str
+ price : int
+ owner : Player
+ mortgaged : bool
+ houses : int
+ has_hotel : bool

+ get_mortgage_value(): int
+ get_unmortgage_cost(): int
}

class AIPlayer {
+ decide_action(): str
}

class EasyAIPlayer {
}

class HardAIPlayer {
}

class Font_Manager {
+ get_font(size: int): Font
}

Player *-- Property : owns
Player ..> Font_Manager : uses
Player ..> Property : interacts with
Player o-- AIPlayer : controls

EasyAIPlayer --|> AIPlayer
HardAIPlayer --|> AIPlayer
@enduml — Player Class Diagram

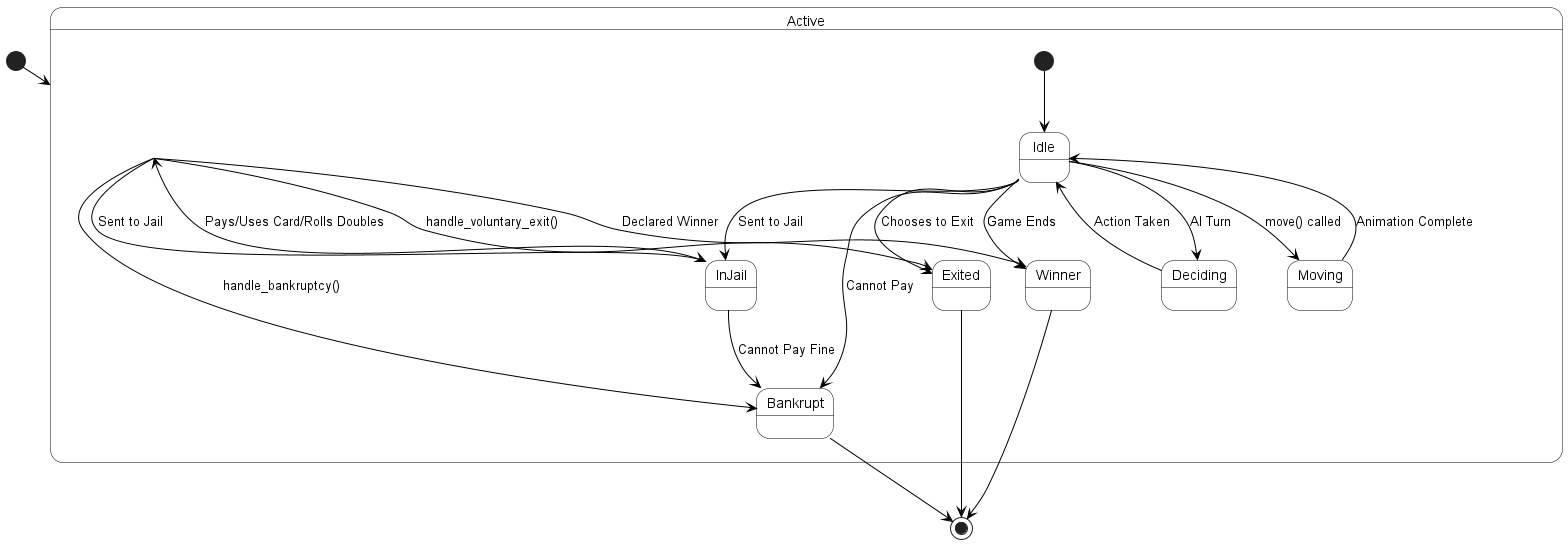

Player State Diagram

@startuml
skinparam state {
BackgroundColor white
BorderColor black
ArrowColor black
}

[*] --> Active

state Active {
[*] --> Idle
Idle --> Moving : move() called
Moving --> Idle : Animation Complete
Idle --> InJail : Sent to Jail
Idle --> Deciding : AI Turn
Deciding --> Idle : Action Taken
Idle --> Bankrupt : Cannot Pay
Idle --> Exited : Chooses to Exit
Idle --> Winner : Game Ends
}

Active --> InJail : Sent to Jail
InJail --> Active : Pays/Uses Card/Rolls Doubles
InJail --> Bankrupt : Cannot Pay Fine

Active --> Bankrupt : handle_bankruptcy()
Bankrupt --> [*]

Active --> Exited : handle_voluntary_exit()
Exited --> [*]

Active --> Winner : Declared Winner
Winner --> [*]
@enduml — Player State Diagram

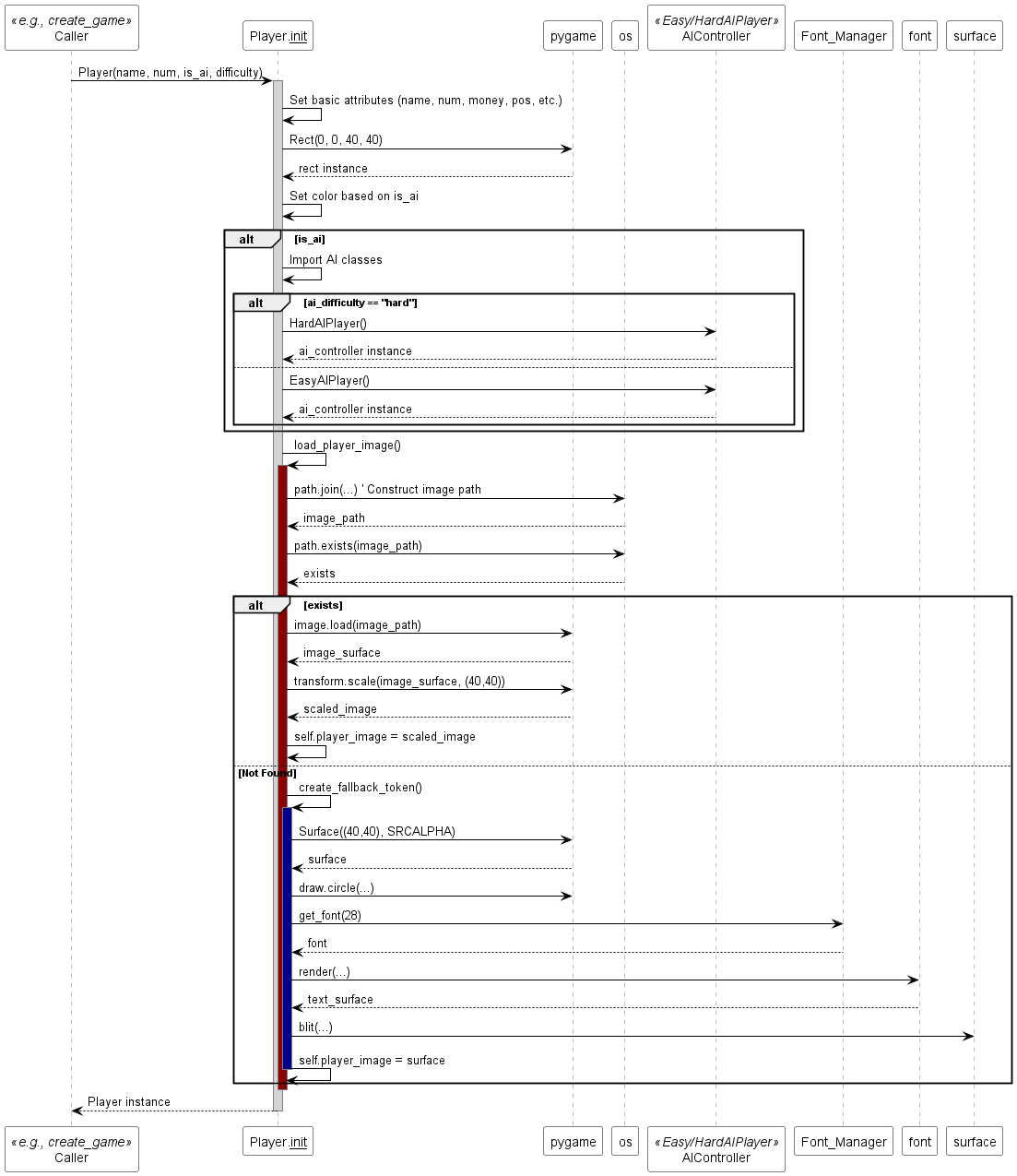

Player Initialization

@startuml
skinparam sequence {
ParticipantBackgroundColor white
ParticipantBorderColor black
ArrowColor black
LifeLineBorderColor gray
LifeLineBackgroundColor lightgray
}

participant "Caller" as Caller <<e.g., create_game>>
participant "Player.__init__" as Init
participant "pygame" as Pygame
participant "os" as OS
participant "AIController" as AIC <<Easy/HardAIPlayer>>

Caller -> Init : Player(name, num, is_ai, difficulty)
activate Init
Init -> Init : Set basic attributes (name, num, money, pos, etc.)
Init -> Pygame : Rect(0, 0, 40, 40)
Pygame --> Init : rect instance
Init -> Init : Set color based on is_ai
alt is_ai
Init -> Init : Import AI classes
alt ai_difficulty == "hard"
Init -> AIC : HardAIPlayer()
AIC --> Init : ai_controller instance
else
Init -> AIC : EasyAIPlayer()
AIC --> Init : ai_controller instance
end
end
Init -> Init : load_player_image()
activate Init #darkred
Init -> OS : path.join(...) ' Construct image path
OS --> Init : image_path
Init -> OS : path.exists(image_path)
OS --> Init : exists
alt exists
Init -> Pygame : image.load(image_path)
Pygame --> Init : image_surface
Init -> Pygame : transform.scale(image_surface, (40,40))
Pygame --> Init : scaled_image
Init -> Init : self.player_image = scaled_image
else Not Found
Init -> Init : create_fallback_token()
activate Init #darkblue
Init -> Pygame : Surface((40,40), SRCALPHA)
Pygame --> Init : surface
Init -> Pygame : draw.circle(...)
Init -> Font_Manager : get_font(28)
Font_Manager --> Init : font
Init -> font : render(...)
font --> Init : text_surface
Init -> surface : blit(...)
Init -> Init : self.player_image = surface
deactivate Init
end
deactivate Init
Init --> Caller : Player instance
deactivate Init
@enduml — Sequence Diagram: Player Initialization

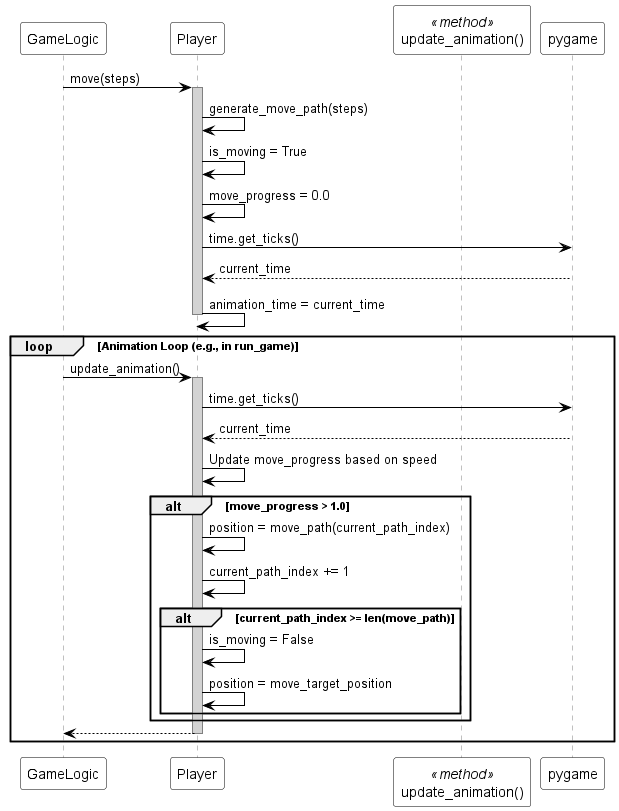

Player Movement

@startuml
skinparam sequence {
ParticipantBackgroundColor white
ParticipantBorderColor black
ArrowColor black
LifeLineBorderColor gray
LifeLineBackgroundColor lightgray
}

participant "GameLogic" as Logic
participant "Player" as P
participant "update_animation()" as UpdateAnim <<method>>
participant "pygame" as Pygame

Logic -> P : move(steps)
activate P
P -> P : generate_move_path(steps)
P -> P : is_moving = True
P -> P : move_progress = 0.0
P -> Pygame : time.get_ticks()
Pygame --> P : current_time
P -> P : animation_time = current_time
deactivate P

loop Animation Loop (e.g., in run_game)
Logic -> P : update_animation()
activate P
P -> Pygame : time.get_ticks()
Pygame --> P : current_time
P -> P : Update move_progress based on speed
alt move_progress > 1.0
P -> P : position = move_path(current_path_index)
P -> P : current_path_index += 1
alt current_path_index >= len(move_path)
P -> P : is_moving = False
P -> P : position = move_target_position
end
end
P --> Logic
deactivate P
end
@enduml — Sequence Diagram: Player Movement

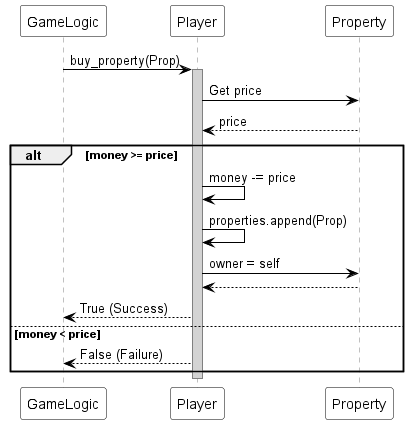

Property Purchase

@startuml
skinparam sequence {
ParticipantBackgroundColor white
ParticipantBorderColor black
ArrowColor black
LifeLineBorderColor gray
LifeLineBackgroundColor lightgray
}

participant "GameLogic" as Logic
participant "Player" as P
participant "Property" as Prop

Logic -> P : buy_property(Prop)
activate P
P -> Prop : Get price
Prop --> P : price
alt money >= price
P -> P : money -= price
P -> P : properties.append(Prop)
P -> Prop : owner = self
Prop --> P
P --> Logic : True (Success)
else money < price
P --> Logic : False (Failure)
end
deactivate P
@enduml — Sequence Diagram: Buying a Property

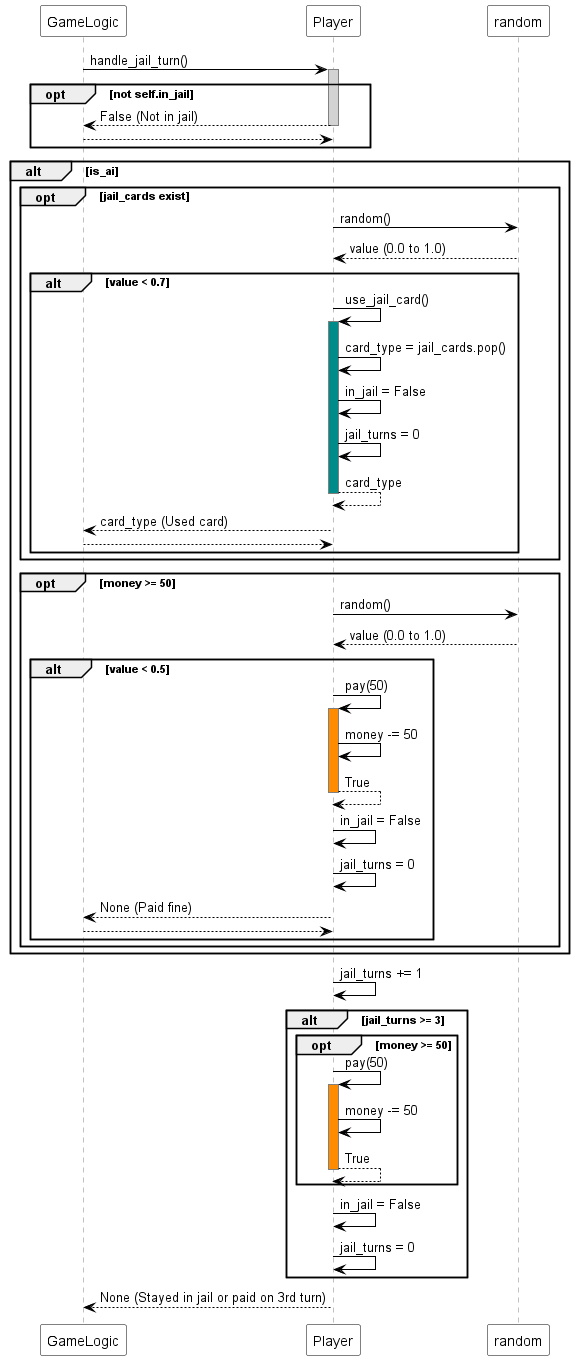

Jail Turn Handling

@startuml
skinparam sequence {
ParticipantBackgroundColor white
ParticipantBorderColor black
ArrowColor black
LifeLineBorderColor gray
LifeLineBackgroundColor lightgray
}

participant "GameLogic" as Logic
participant "Player" as P
participant "random" as Random

Logic -> P : handle_jail_turn()
activate P
opt not self.in_jail
P --> Logic : False (Not in jail)
deactivate P
return
end

alt is_ai
opt jail_cards exist
P -> Random : random()
Random --> P : value (0.0 to 1.0)
alt value < 0.7
P -> P : use_jail_card()
activate P #DarkCyan
P -> P : card_type = jail_cards.pop()
P -> P : in_jail = False
P -> P : jail_turns = 0
P --> P : card_type
deactivate P
P --> Logic : card_type (Used card)
deactivate P
return
end
end
opt money >= 50
P -> Random : random()
Random --> P : value (0.0 to 1.0)
alt value < 0.5
P -> P : pay(50)
activate P #DarkOrange
P -> P : money -= 50
P --> P : True
deactivate P
P -> P : in_jail = False
P -> P : jail_turns = 0
P --> Logic : None (Paid fine)
deactivate P
return
end
end
end

P -> P : jail_turns += 1
alt jail_turns >= 3
opt money >= 50
P -> P : pay(50)
activate P #DarkOrange
P -> P : money -= 50
P --> P : True
deactivate P
end
P -> P : in_jail = False
P -> P : jail_turns = 0
end

P --> Logic : None (Stayed in jail or paid on 3rd turn)
deactivate P
@enduml — Sequence Diagram: Jail Turn Handling

Asset Calculation

@startuml
skinparam sequence {
ParticipantBackgroundColor white
ParticipantBorderColor black
ArrowColor black
LifeLineBorderColor gray
LifeLineBackgroundColor lightgray
}

participant "Caller" as Caller
participant "Player" as P
participant "Property" as Prop

Caller -> P : get_total_assets()
activate P
P -> P : total = self.money
loop for prop in self.properties
P -> Prop : Get mortgaged status
Prop --> P : is_mortgaged
alt not is_mortgaged
P -> Prop : Get price
Prop --> P : price
P -> P : total += price
else is_mortgaged
P -> Prop : Get price
Prop --> P : price
P -> P : total += price / 2
end

P -> Prop : Get houses count
Prop --> P : num_houses
alt num_houses > 0
P -> Prop : get_house_sale_value()
Prop --> P : house_value
P -> P : total += house_value * num_houses
end

P -> Prop : Get hotel status
Prop --> P : has_hotel
alt has_hotel
P -> Prop : get_hotel_sale_value()
Prop --> P : hotel_value
P -> P : total += hotel_value
end
end loop
P --> Caller : total
deactivate P
@enduml — Sequence Diagram: Total Asset Calculation

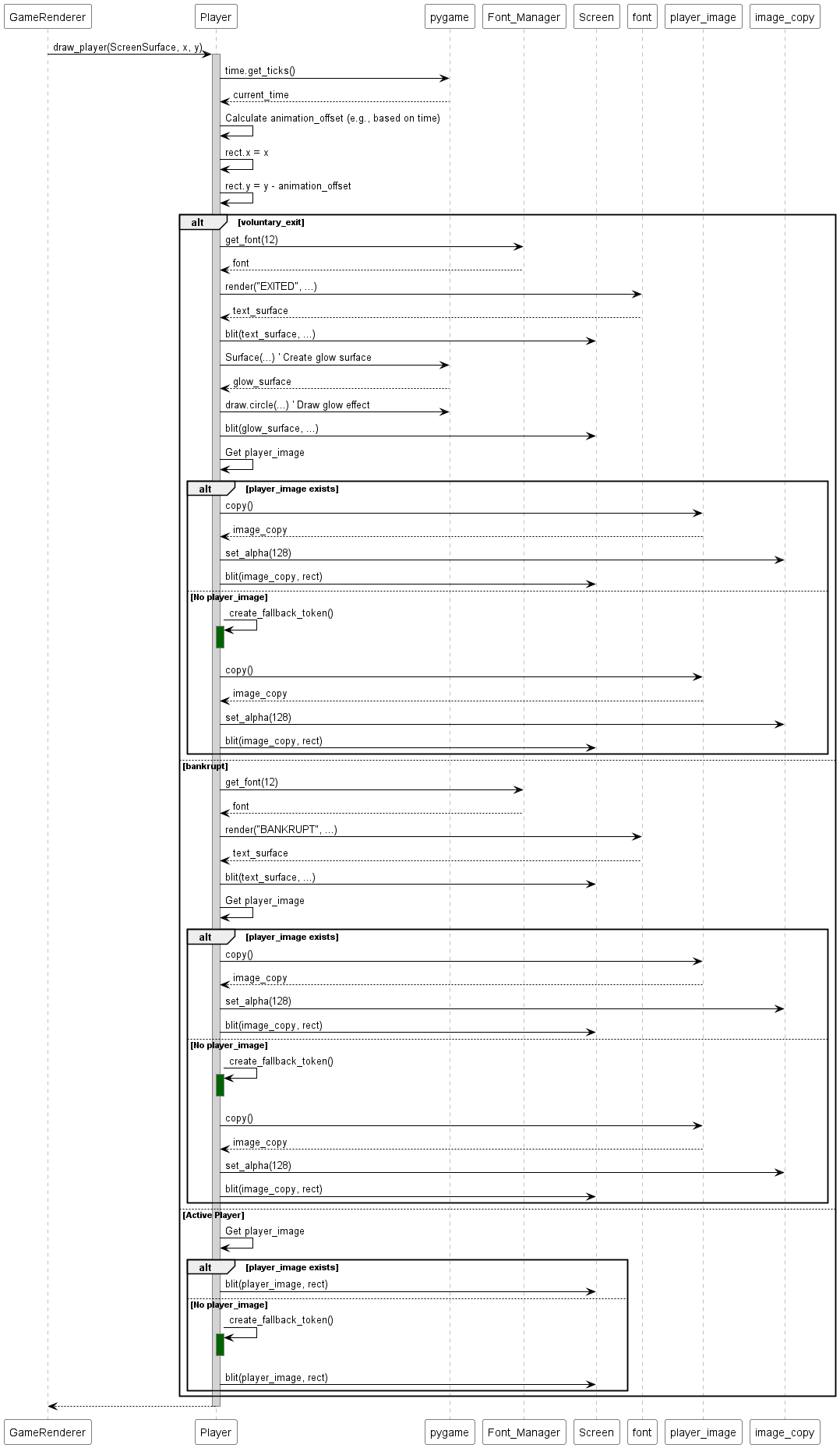

Player Drawing

@startuml
skinparam sequence {
ParticipantBackgroundColor white
ParticipantBorderColor black
ArrowColor black
LifeLineBorderColor gray
LifeLineBackgroundColor lightgray
}

participant "GameRenderer" as Renderer
participant "Player" as P
participant "pygame" as Pygame
participant "Font_Manager" as FM
participant "Screen" as ScreenSurface

Renderer -> P : draw_player(ScreenSurface, x, y)
activate P
P -> Pygame : time.get_ticks()
Pygame --> P : current_time
P -> P : Calculate animation_offset (e.g., based on time)
P -> P : rect.x = x
P -> P : rect.y = y - animation_offset

alt voluntary_exit
P -> FM : get_font(12)
FM --> P : font
P -> font : render("EXITED", ...)
font --> P : text_surface
P -> ScreenSurface : blit(text_surface, ...)
P -> Pygame : Surface(...) ' Create glow surface
Pygame --> P : glow_surface
P -> Pygame : draw.circle(...) ' Draw glow effect
P -> ScreenSurface : blit(glow_surface, ...)
P -> P : Get player_image
alt player_image exists
P -> player_image : copy()
player_image --> P : image_copy
P -> image_copy : set_alpha(128)
P -> ScreenSurface : blit(image_copy, rect)
else No player_image
P -> P : create_fallback_token()
activate P #DarkGreen
' ... fallback creation ...
deactivate P
P -> player_image : copy()
player_image --> P : image_copy
P -> image_copy : set_alpha(128)
P -> ScreenSurface : blit(image_copy, rect)
end
else bankrupt
P -> FM : get_font(12)
FM --> P : font
P -> font : render("BANKRUPT", ...)
font --> P : text_surface
P -> ScreenSurface : blit(text_surface, ...)
P -> P : Get player_image
alt player_image exists
P -> player_image : copy()
player_image --> P : image_copy
P -> image_copy : set_alpha(128)
P -> ScreenSurface : blit(image_copy, rect)
else No player_image
P -> P : create_fallback_token()
activate P #DarkGreen
' ... fallback creation ...
deactivate P
P -> player_image : copy()
player_image --> P : image_copy
P -> image_copy : set_alpha(128)
P -> ScreenSurface : blit(image_copy, rect)
end
else Active Player
P -> P : Get player_image
alt player_image exists
P -> ScreenSurface : blit(player_image, rect)
else No player_image
P -> P : create_fallback_token()
activate P #DarkGreen
' ... fallback creation ...
deactivate P
P -> ScreenSurface : blit(player_image, rect)
end
end
P --> Renderer
deactivate P
@enduml — Sequence Diagram: Player Drawing

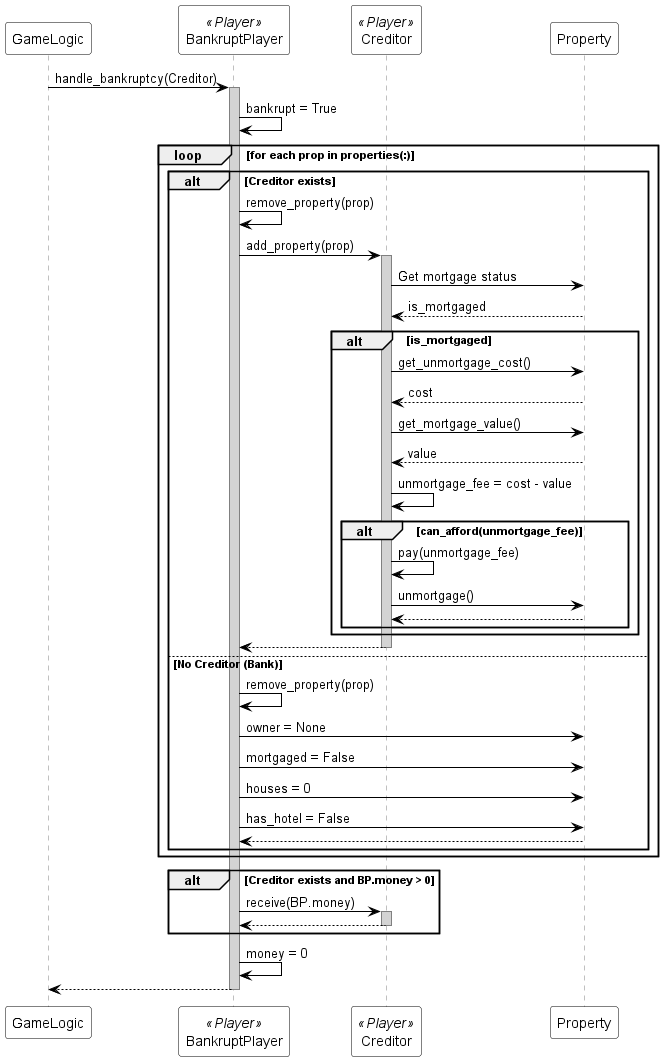

Bankruptcy Handling

@startuml
skinparam sequence {
ParticipantBackgroundColor white
ParticipantBorderColor black
ArrowColor black
LifeLineBorderColor gray
LifeLineBackgroundColor lightgray
}

participant "GameLogic" as Logic
participant "BankruptPlayer" as BP <<Player>>
participant "Creditor" as CP <<Player>>
participant "Property" as Prop

Logic -> BP : handle_bankruptcy(Creditor)
activate BP
BP -> BP : bankrupt = True

loop for each prop in properties(:)
alt Creditor exists
BP -> BP : remove_property(prop)
BP -> CP : add_property(prop)
activate CP
CP -> Prop : Get mortgage status
Prop --> CP : is_mortgaged
alt is_mortgaged
CP -> Prop : get_unmortgage_cost()
Prop --> CP : cost
CP -> Prop : get_mortgage_value()
Prop --> CP : value
CP -> CP : unmortgage_fee = cost - value
alt can_afford(unmortgage_fee)
CP -> CP : pay(unmortgage_fee)
CP -> Prop : unmortgage()
Prop --> CP
end
end
CP --> BP
deactivate CP
else No Creditor (Bank)
BP -> BP : remove_property(prop)
BP -> Prop : owner = None
BP -> Prop : mortgaged = False
BP -> Prop : houses = 0
BP -> Prop : has_hotel = False
Prop --> BP
end
end loop

alt Creditor exists and BP.money > 0
BP -> CP : receive(BP.money)
activate CP
CP --> BP
deactivate CP
end
BP -> BP : money = 0
BP --> Logic
deactivate BP
@enduml — Sequence Diagram: Handling Bankruptcy

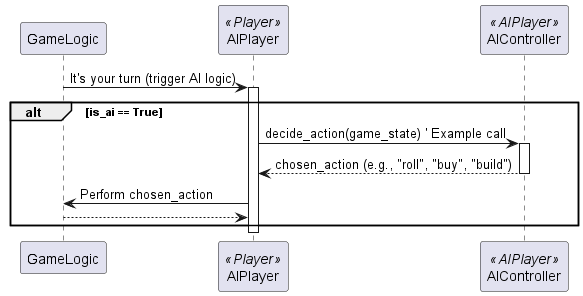

AI Player Turn

@startuml
participant "GameLogic" as Logic
participant "AIPlayer" as AIP <<Player>>
participant "AIController" as AIC <<AIPlayer>>

Logic -> AIP : It's your turn (trigger AI logic)
activate AIP
alt is_ai == True
AIP -> AIC : decide_action(game_state) ' Example call
activate AIC
' ... AI Controller performs calculations ...
AIC --> AIP : chosen_action (e.g., "roll", "buy", "build")
deactivate AIC
AIP -> Logic : Perform chosen_action
Logic --> AIP
end
deactivate AIP
@enduml — Sequence Diagram: AI Player Turn (Conceptual)
