Game Logic Module

This module implements the core rules and mechanics of the Property Tycoon game. It manages player turns, property transactions, rent calculation, card draws, auctions, and game state progression according to the established rules. The central class, GameLogic, orchestrates these elements.

High-Level Design

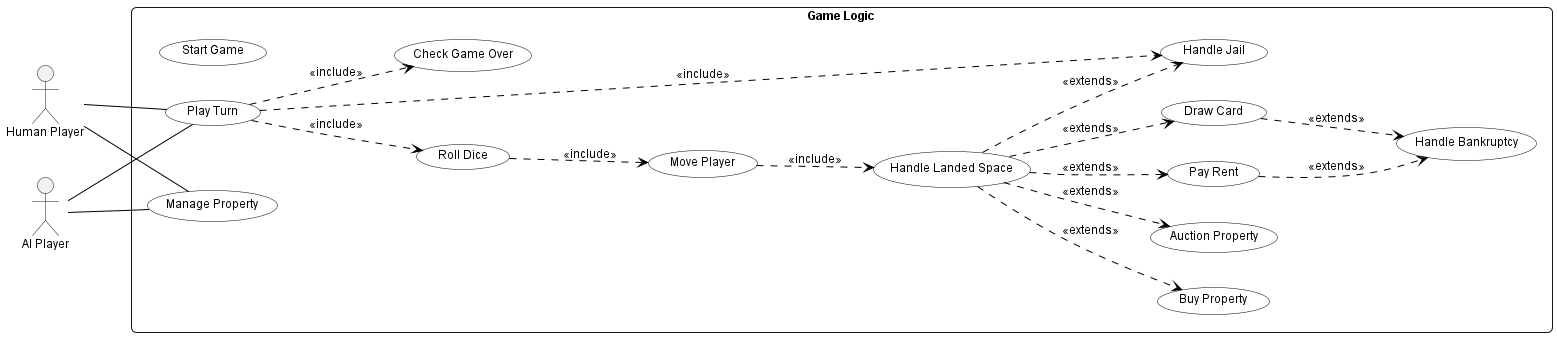

Use Case Diagram —————————————————~

Illustrates the main actions managed or initiated by the Game Logic.

@startuml skinparam handwritten false skinparam defaultFontName Arial skinparam defaultFontSize 12 skinparam roundcorner 10 skinparam usecase { BackgroundColor white BorderColor black ArrowColor black } left to right direction actor "Human Player" as HumanPlayer actor "AI Player" as AIPlayer rectangle "Game Logic" { usecase "Start Game" as StartGame usecase "Play Turn" as PlayTurn usecase "Roll Dice" as RollDice usecase "Move Player" as MovePlayer usecase "Handle Landed Space" as HandleSpace usecase "Buy Property" as BuyProperty usecase "Auction Property" as AuctionProperty usecase "Pay Rent" as PayRent usecase "Draw Card" as DrawCard usecase "Manage Property" as ManageProperty usecase "Handle Jail" as HandleJail usecase "Check Game Over" as CheckGameOver usecase "Handle Bankruptcy" as HandleBankruptcy } HumanPlayer -- PlayTurn AIPlayer -- PlayTurn PlayTurn ..> RollDice : <<include>> RollDice ..> MovePlayer : <<include>> MovePlayer ..> HandleSpace : <<include>> HandleSpace ..> BuyProperty : <<extends>> HandleSpace ..> AuctionProperty : <<extends>> HandleSpace ..> PayRent : <<extends>> HandleSpace ..> DrawCard : <<extends>> HandleSpace ..> HandleJail : <<extends>> PlayTurn ..> HandleJail : <<include>> HumanPlayer -- ManageProperty AIPlayer -- ManageProperty PlayTurn ..> CheckGameOver : <<include>> PayRent ..> HandleBankruptcy : <<extends>> DrawCard ..> HandleBankruptcy : <<extends>> @enduml

Game Logic Use Cases

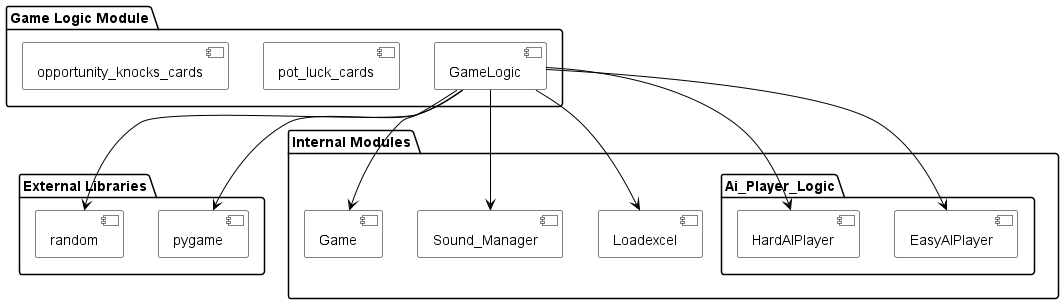

Dependency Diagram —————————————————~~~

Shows the primary dependencies of the Game Logic module.

@startuml skinparam componentStyle uml2 skinparam component { BackgroundColor white BorderColor black ArrowColor black } package "Game Logic Module" { [GameLogic] [pot_luck_cards] [opportunity_knocks_cards] } package "External Libraries" { [pygame] [random] } package "Internal Modules" { [Loadexcel] package "Ai_Player_Logic" { [EasyAIPlayer] [HardAIPlayer] } [Sound_Manager] [Game] } [GameLogic] --> [pygame] [GameLogic] --> [random] [GameLogic] --> [Loadexcel] [GameLogic] --> [EasyAIPlayer] [GameLogic] --> [HardAIPlayer] [GameLogic] --> [Sound_Manager] [GameLogic] --> [Game] @enduml

Game Logic Dependencies

Detailed Design

Class and Data Structures

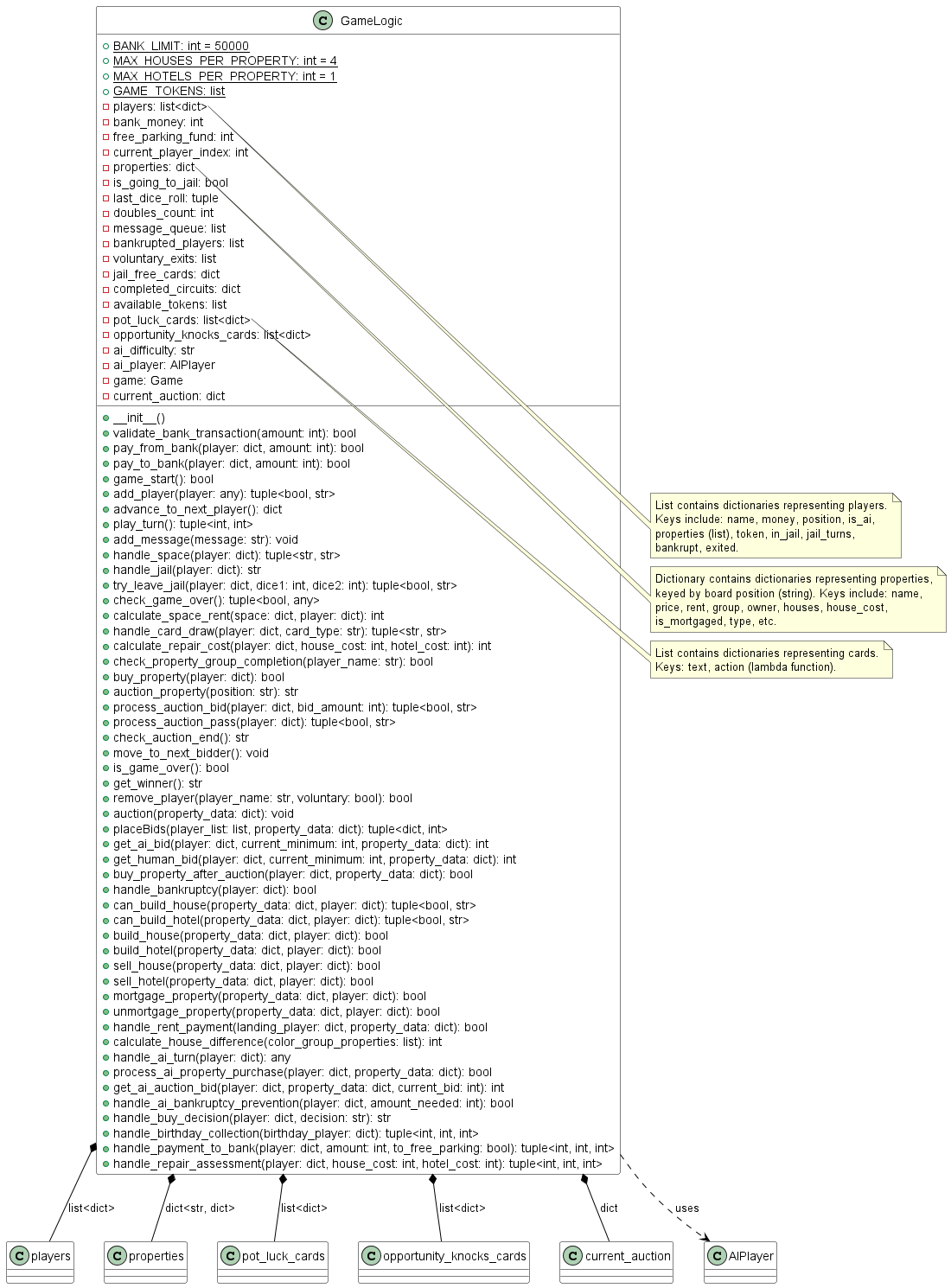

GameLogic Class

The core class managing the game state and rules.

@startuml skinparam class { BackgroundColor white BorderColor black ArrowColor black } class GameLogic { + {static} BANK_LIMIT: int = 50000 + {static} MAX_HOUSES_PER_PROPERTY: int = 4 + {static} MAX_HOTELS_PER_PROPERTY: int = 1 + {static} GAME_TOKENS: list - players: list<dict> - bank_money: int - free_parking_fund: int - current_player_index: int - properties: dict - is_going_to_jail: bool - last_dice_roll: tuple - doubles_count: int - message_queue: list - bankrupted_players: list - voluntary_exits: list - jail_free_cards: dict - completed_circuits: dict - available_tokens: list - pot_luck_cards: list<dict> - opportunity_knocks_cards: list<dict> - ai_difficulty: str - ai_player: AIPlayer - game: Game - current_auction: dict + __init__() + validate_bank_transaction(amount: int): bool + pay_from_bank(player: dict, amount: int): bool + pay_to_bank(player: dict, amount: int): bool + game_start(): bool + add_player(player: any): tuple<bool, str> + advance_to_next_player(): dict + play_turn(): tuple<int, int> + add_message(message: str): void + handle_space(player: dict): tuple<str, str> + handle_jail(player: dict): str + try_leave_jail(player: dict, dice1: int, dice2: int): tuple<bool, str> + check_game_over(): tuple<bool, any> + calculate_space_rent(space: dict, player: dict): int + handle_card_draw(player: dict, card_type: str): tuple<str, str> + calculate_repair_cost(player: dict, house_cost: int, hotel_cost: int): int + check_property_group_completion(player_name: str): bool + buy_property(player: dict): bool + auction_property(position: str): str + process_auction_bid(player: dict, bid_amount: int): tuple<bool, str> + process_auction_pass(player: dict): tuple<bool, str> + check_auction_end(): str + move_to_next_bidder(): void + is_game_over(): bool + get_winner(): str + remove_player(player_name: str, voluntary: bool): bool + auction(property_data: dict): void + placeBids(player_list: list, property_data: dict): tuple<dict, int> + get_ai_bid(player: dict, current_minimum: int, property_data: dict): int + get_human_bid(player: dict, current_minimum: int, property_data: dict): int + buy_property_after_auction(player: dict, property_data: dict): bool + handle_bankruptcy(player: dict): bool + can_build_house(property_data: dict, player: dict): tuple<bool, str> + can_build_hotel(property_data: dict, player: dict): tuple<bool, str> + build_house(property_data: dict, player: dict): bool + build_hotel(property_data: dict, player: dict): bool + sell_house(property_data: dict, player: dict): bool + sell_hotel(property_data: dict, player: dict): bool + mortgage_property(property_data: dict, player: dict): bool + unmortgage_property(property_data: dict, player: dict): bool + handle_rent_payment(landing_player: dict, property_data: dict): bool + calculate_house_difference(color_group_properties: list): int + handle_ai_turn(player: dict): any + process_ai_property_purchase(player: dict, property_data: dict): bool + get_ai_auction_bid(player: dict, property_data: dict, current_bid: int): int + handle_ai_bankruptcy_prevention(player: dict, amount_needed: int): bool + handle_buy_decision(player: dict, decision: str): str + handle_birthday_collection(birthday_player: dict): tuple<int, int, int> + handle_payment_to_bank(player: dict, amount: int, to_free_parking: bool): tuple<int, int, int> + handle_repair_assessment(player: dict, house_cost: int, hotel_cost: int): tuple<int, int, int> } note right of GameLogic::players List contains dictionaries representing players. Keys include: name, money, position, is_ai, properties (list), token, in_jail, jail_turns, bankrupt, exited. end note note right of GameLogic::properties Dictionary contains dictionaries representing properties, keyed by board position (string). Keys include: name, price, rent, group, owner, houses, house_cost, is_mortgaged, type, etc. end note note right of GameLogic::pot_luck_cards List contains dictionaries representing cards. Keys: text, action (lambda function). end note GameLogic *-- "players" : list<dict> GameLogic *-- "properties" : dict<str, dict> GameLogic *-- "pot_luck_cards" : list<dict> GameLogic *-- "opportunity_knocks_cards" : list<dict> GameLogic *-- "current_auction" : dict GameLogic ..> "AIPlayer" : uses @enduml

GameLogic Class Diagram

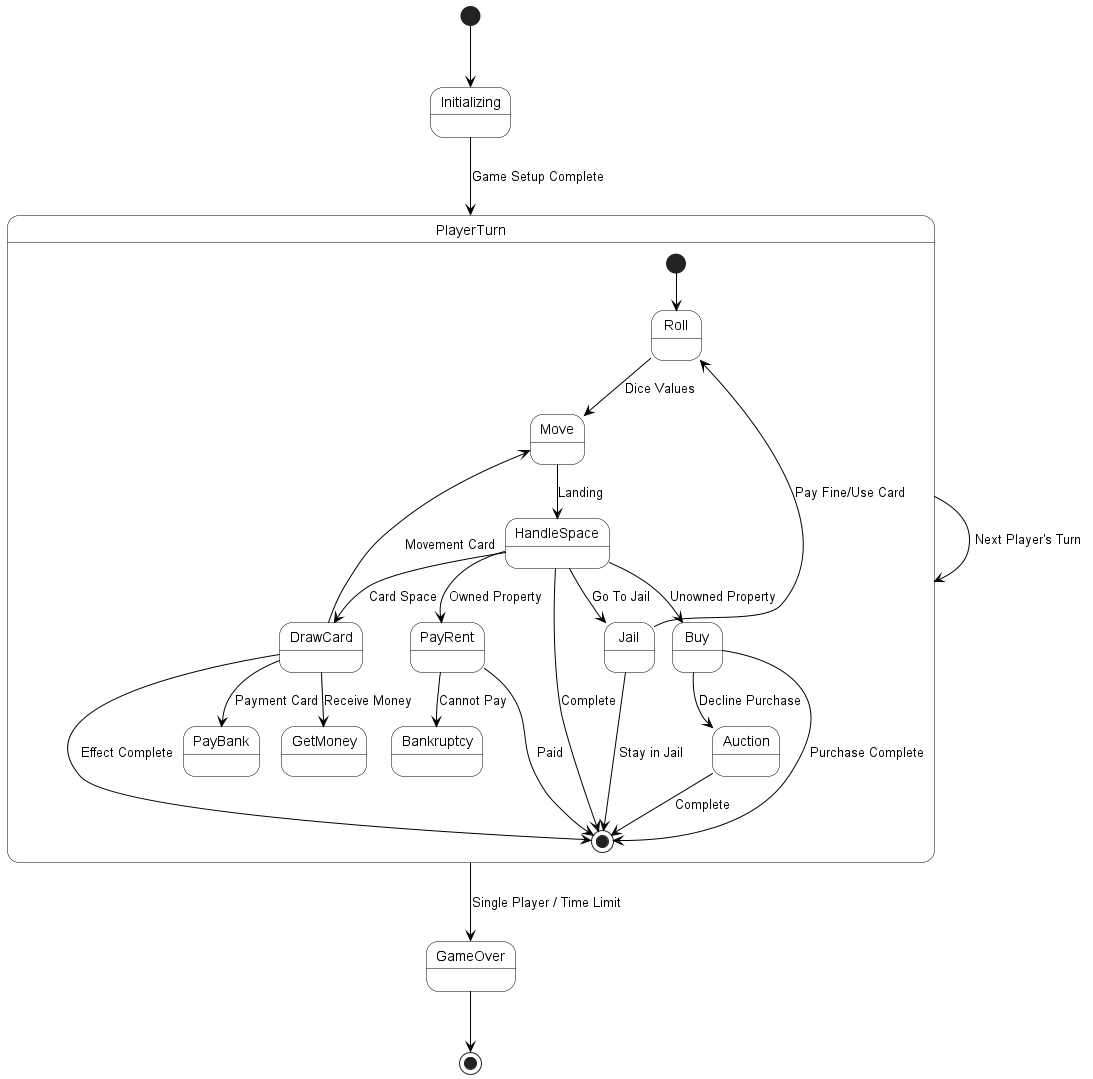

Simplified Game State

Shows the main states the game can be in, focusing on turn progression and auctions.

@startuml skinparam state { BackgroundColor white BorderColor black ArrowColor black } [*] --> Initializing Initializing --> PlayerTurn : Game Setup Complete state PlayerTurn { [*] --> Roll Roll --> Move : Dice Values Move --> HandleSpace : Landing HandleSpace --> [*] : Complete HandleSpace --> Buy : Unowned Property HandleSpace --> PayRent : Owned Property HandleSpace --> DrawCard : Card Space HandleSpace --> Jail : Go To Jail Buy --> Auction : Decline Purchase Buy --> [*] : Purchase Complete Auction --> [*] : Complete PayRent --> [*] : Paid PayRent --> Bankruptcy : Cannot Pay DrawCard --> Move : Movement Card DrawCard --> PayBank : Payment Card DrawCard --> GetMoney : Receive Money DrawCard --> [*] : Effect Complete Jail --> Roll : Pay Fine/Use Card Jail --> [*] : Stay in Jail } PlayerTurn --> PlayerTurn : Next Player's Turn PlayerTurn --> GameOver : Single Player / Time Limit GameOver --> [*] @enduml

Simplified Game State Diagram

Activity Diagrams —————————————————~~

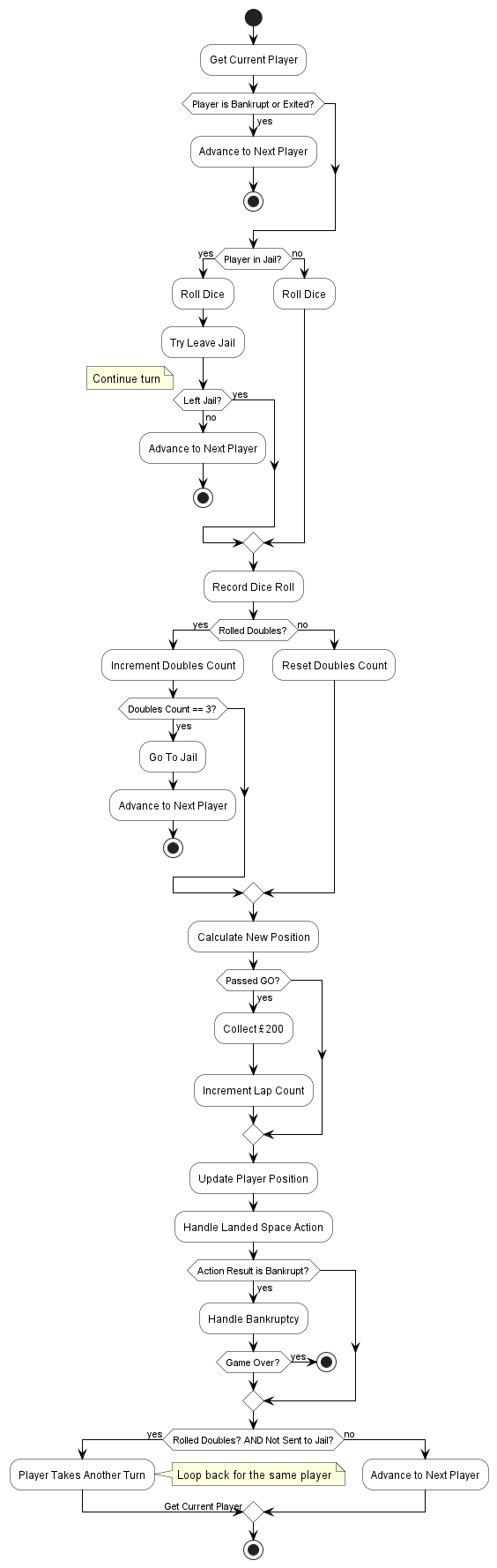

Play Turn Flow

Illustrates the sequence of actions within a single player’s turn.

@startuml skinparam activity { BackgroundColor white BorderColor black ArrowColor black } start :Get Current Player; if (Player is Bankrupt or Exited?) then (yes) :Advance to Next Player; stop endif if (Player in Jail?) then (yes) :Roll Dice; :Try Leave Jail; if (Left Jail?) then (no) :Advance to Next Player; stop else (yes) note right: Continue turn endif else (no) :Roll Dice; endif :Record Dice Roll; if (Rolled Doubles?) then (yes) :Increment Doubles Count; if (Doubles Count == 3?) then (yes) :Go To Jail; :Advance to Next Player; stop endif else (no) :Reset Doubles Count; endif :Calculate New Position; if (Passed GO?) then (yes) :Collect £200; :Increment Lap Count; endif :Update Player Position; :Handle Landed Space Action; if (Action Result is Bankrupt?) then (yes) :Handle Bankruptcy; if (Game Over?) then (yes) stop endif endif if (Rolled Doubles? AND Not Sent to Jail?) then (yes) :Player Takes Another Turn; -> Get Current Player; note right: Loop back for the same player else (no) :Advance to Next Player; endif stop @enduml

Activity Diagram: Play Turn

Handle Landed Space Flow

Details the logic when a player lands on a specific board space.

@startuml skinparam activity { BackgroundColor white BorderColor black ArrowColor black } start :Get Space Data (from properties dict); switch (Space Type?) case ( Property / Station / Utility ) if (Owned?) then (yes) if (Owner is Current Player?) then (no) :Calculate Rent; :Pay Rent to Owner; if (Cannot Pay?) then (yes) :Handle Bankruptcy; endif else (yes) :Landed on Own Property; endif else (no) if (Can be Bought? AND Passed GO?) then (yes) :Signal 'Can Buy' state; note right: Wait for player/AI decision (Buy/Auction) else (no) :Do Nothing (e.g., Corner Space); endif endif case ( Tax ) :Pay Tax Amount to Bank; :Show Tax Popup (if UI); case ( Pot Luck / Opportunity Knocks ) :Draw Card; :Execute Card Action; if (Action causes move?) then (yes) :Handle Landed Space (recursive); endif if (Action causes payment issue?) then (yes) :Handle Bankruptcy; endif case ( Go To Jail ) :Send Player to Jail; case ( Free Parking ) :Collect Free Parking Fund (if applicable); :Show Free Parking Popup (if UI); case ( Jail / Just Visiting ) :Do Nothing; case ( GO ) :Do Nothing (Handled by Pass GO logic); endswitch stop @enduml

Activity Diagram: Handle Landed Space

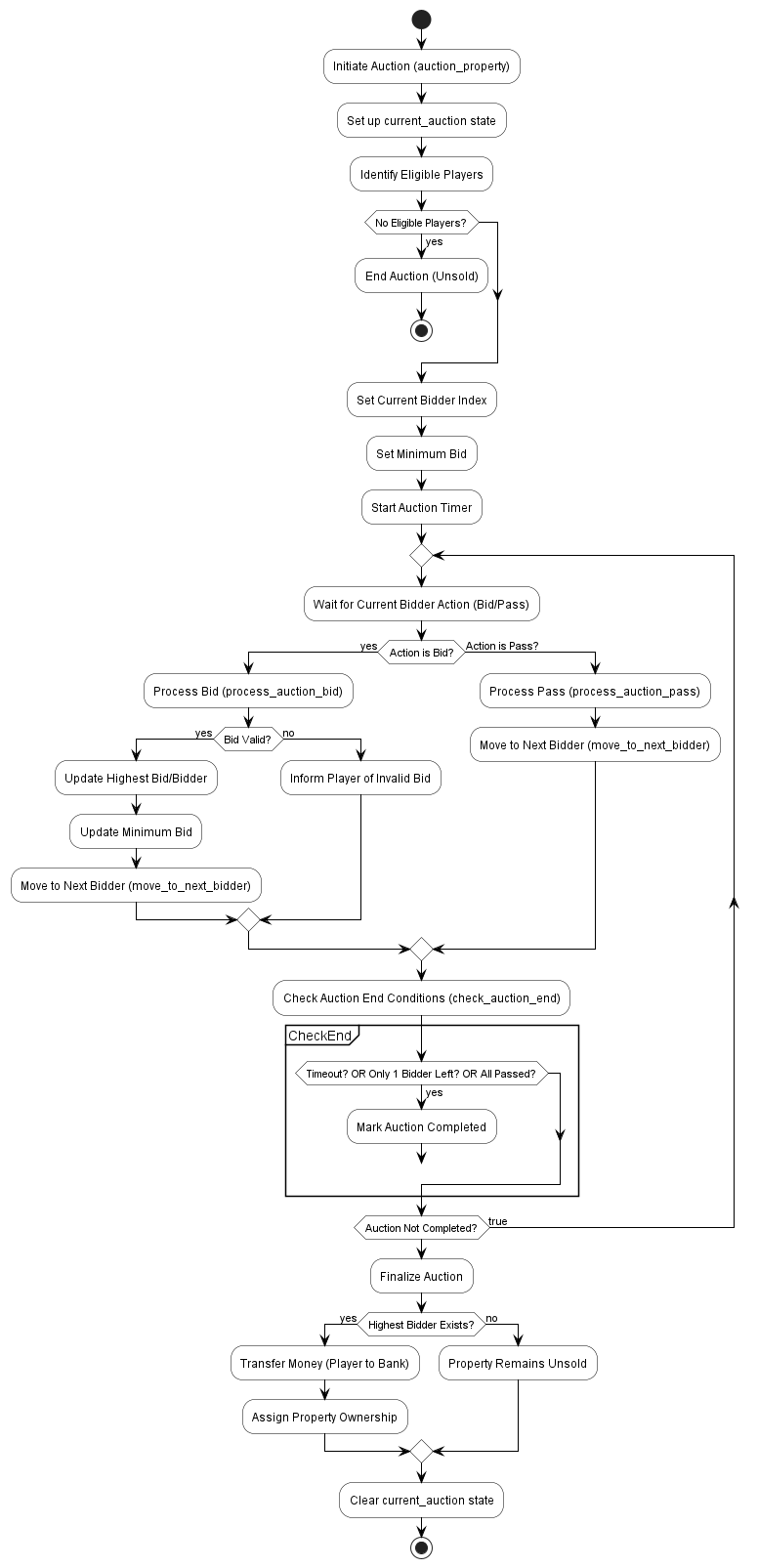

Auction Flow (Simplified)

Outlines the basic steps of the property auction process using the current_auction state.

@startuml skinparam activity { BackgroundColor white BorderColor black ArrowColor black } start :Initiate Auction (auction_property); :Set up current_auction state; :Identify Eligible Players; if (No Eligible Players?) then (yes) :End Auction (Unsold); stop endif :Set Current Bidder Index; :Set Minimum Bid; :Start Auction Timer; repeat :Wait for Current Bidder Action (Bid/Pass); if (Action is Bid?) then (yes) :Process Bid (process_auction_bid); if (Bid Valid?) then (yes) :Update Highest Bid/Bidder; :Update Minimum Bid; :Move to Next Bidder (move_to_next_bidder); else (no) :Inform Player of Invalid Bid; endif else (Action is Pass?) :Process Pass (process_auction_pass); :Move to Next Bidder (move_to_next_bidder); endif :Check Auction End Conditions (check_auction_end); partition CheckEnd { if (Timeout? OR Only 1 Bidder Left? OR All Passed?) then (yes) :Mark Auction Completed; break endif } repeat while (Auction Not Completed?) is (true) :Finalize Auction; if (Highest Bidder Exists?) then (yes) :Transfer Money (Player to Bank); :Assign Property Ownership; else (no) :Property Remains Unsold; endif :Clear current_auction state; stop @enduml

Activity Diagram: Auction Process

Sequence Diagrams —————————————————~~

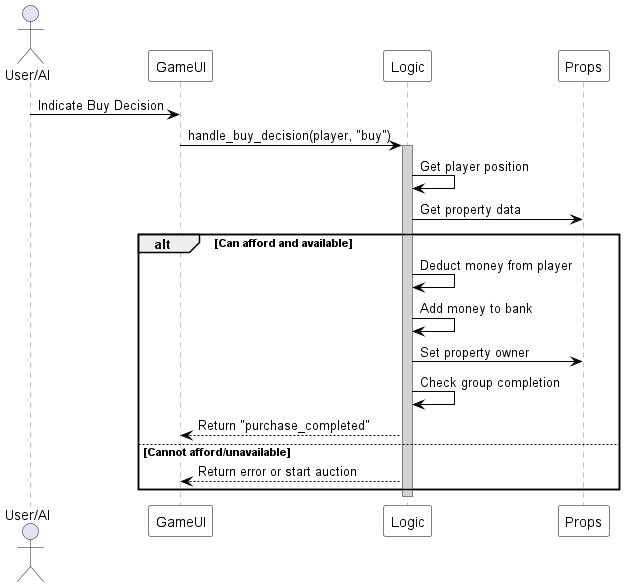

Player Buys Property

@startuml skinparam sequence { ParticipantBackgroundColor white ParticipantBorderColor black ArrowColor black LifeLineBorderColor gray LifeLineBackgroundColor lightgray } actor "User/AI" as User participant "GameUI" as Game participant "Logic" as GameLogic participant "Props" as Properties User -> Game : Indicate Buy Decision Game -> GameLogic : handle_buy_decision(player, "buy") activate GameLogic GameLogic -> GameLogic : Get player position GameLogic -> Properties : Get property data alt Can afford and available GameLogic -> GameLogic : Deduct money from player GameLogic -> GameLogic : Add money to bank GameLogic -> Properties : Set property owner GameLogic -> GameLogic : Check group completion GameLogic --> Game : Return "purchase_completed" else Cannot afford/unavailable GameLogic --> Game : Return error or start auction end deactivate GameLogic @enduml

Sequence Diagram: Player Buys Property

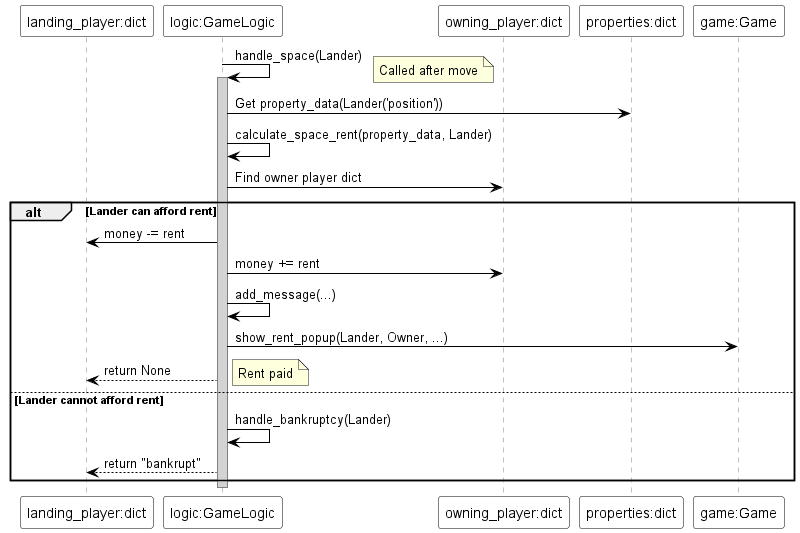

Rent Payment

@startuml skinparam sequence { ParticipantBackgroundColor white ParticipantBorderColor black ArrowColor black LifeLineBorderColor gray LifeLineBackgroundColor lightgray } participant "landing_player:dict" as Lander participant "logic:GameLogic" as Logic participant "owning_player:dict" as Owner participant "properties:dict" as Props participant "game:Game" as GameUI Logic -> Logic : handle_space(Lander) note right: Called after move activate Logic Logic -> Props : Get property_data(Lander('position')) Logic -> Logic : calculate_space_rent(property_data, Lander) Logic -> Owner : Find owner player dict alt Lander can afford rent Logic -> Lander : money -= rent Logic -> Owner : money += rent Logic -> Logic : add_message(...) Logic -> GameUI : show_rent_popup(Lander, Owner, ...) Logic --> Lander : return None note right: Rent paid else Lander cannot afford rent Logic -> Logic : handle_bankruptcy(Lander) Logic --> Lander : return "bankrupt" end deactivate Logic @enduml

Sequence Diagram: Rent Payment

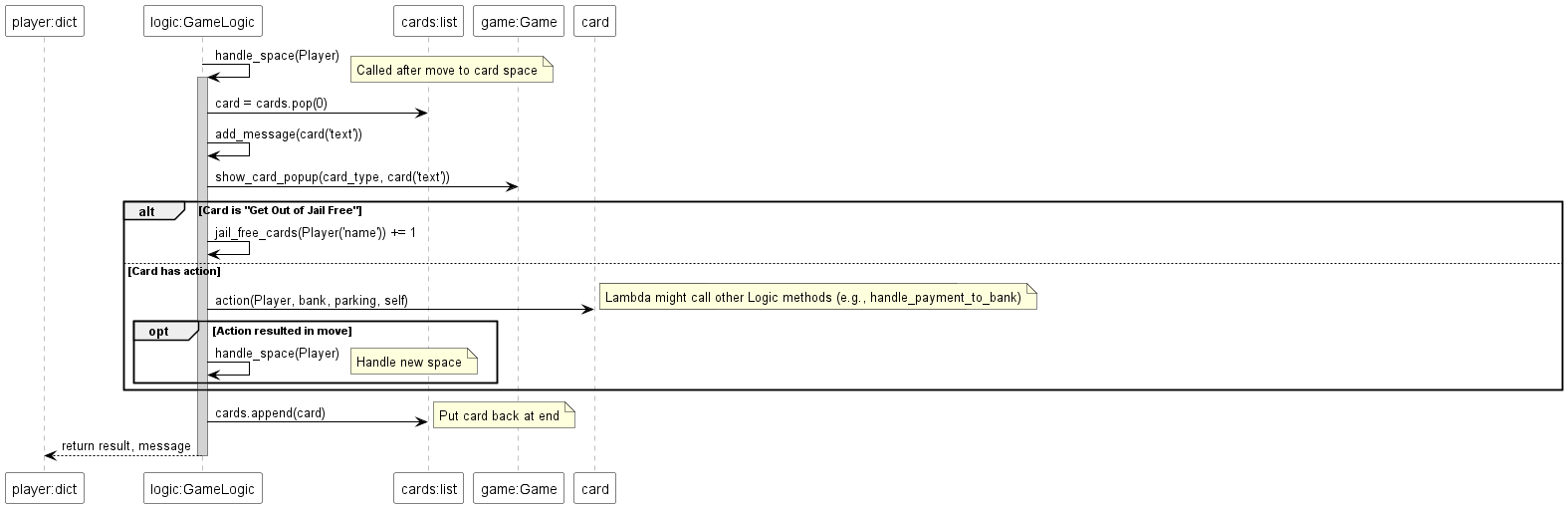

Card Draw

@startuml skinparam sequence { ParticipantBackgroundColor white ParticipantBorderColor black ArrowColor black LifeLineBorderColor gray LifeLineBackgroundColor lightgray } participant "player:dict" as Player participant "logic:GameLogic" as Logic participant "cards:list" as Cards participant "game:Game" as GameUI Logic -> Logic : handle_space(Player) note right: Called after move to card space activate Logic Logic -> Cards : card = cards.pop(0) Logic -> Logic : add_message(card('text')) Logic -> GameUI : show_card_popup(card_type, card('text')) alt Card is "Get Out of Jail Free" Logic -> Logic : jail_free_cards(Player('name')) += 1 else Card has action Logic -> card : action(Player, bank, parking, self) note right: Execute lambda note right: Lambda might modify Player money, position, bank, parking note right: Lambda might call other Logic methods (e.g., handle_payment_to_bank) opt Action resulted in move Logic -> Logic : handle_space(Player) note right: Handle new space end end Logic -> Cards : cards.append(card) note right: Put card back at end Logic --> Player : return result, message deactivate Logic @enduml

Sequence Diagram: Card Draw

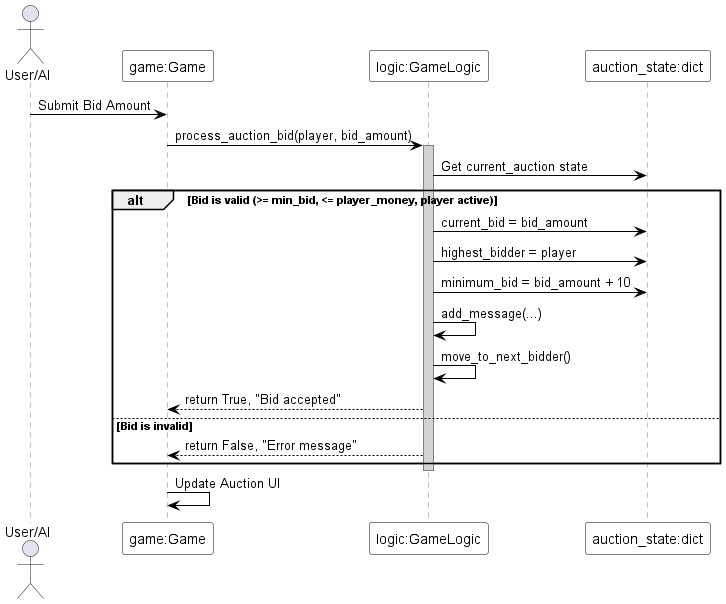

Auction Bid Process

@startuml skinparam sequence { ParticipantBackgroundColor white ParticipantBorderColor black ArrowColor black LifeLineBorderColor gray LifeLineBackgroundColor lightgray } actor "User/AI" as User participant "game:Game" as GameUI participant "logic:GameLogic" as Logic participant "auction_state:dict" as Auction User -> GameUI : Submit Bid Amount GameUI -> Logic : process_auction_bid(player, bid_amount) activate Logic Logic -> Auction : Get current_auction state alt Bid is valid (>= min_bid, <= player_money, player active) Logic -> Auction : current_bid = bid_amount Logic -> Auction : highest_bidder = player Logic -> Auction : minimum_bid = bid_amount + 10 Logic -> Logic : add_message(...) Logic -> Logic : move_to_next_bidder() Logic --> GameUI : return True, "Bid accepted" else Bid is invalid Logic --> GameUI : return False, "Error message" end deactivate Logic GameUI -> GameUI : Update Auction UI @enduml

Sequence Diagram: Auction Bid

Key Classes/Data Overview

  • GameLogic: The main orchestrator class holding game state and rules logic.

  • Player Dictionary: Represents a player’s state (money, position, properties, AI status, jail status, etc.).

  • Property Dictionary: Represents a property’s state (owner, houses, mortgage status, rent levels, etc.), keyed by board position.

  • Card Dictionary: Represents a Pot Luck or Opportunity Knocks card, containing its text and an action (lambda function) to execute.

  • Auction Dictionary (`current_auction`): Holds the state of an ongoing auction (property, bidders, current bid, etc.).

API Documentation

class src.Game_Logic.GameLogic[source]

Bases: object

BANK_LIMIT = 50000
GAME_TOKENS = ['boot', 'smartphone', 'ship', 'hatstand', 'cat', 'iron']
MAX_HOTELS_PER_PROPERTY = 1
MAX_HOUSES_PER_PROPERTY = 4
add_message(message)[source]
add_player(player)[source]
advance_to_next_player()[source]
auction(property_data)[source]
auction_property(position)[source]
build_hotel(property_data, player)[source]
build_house(property_data, player)[source]
buy_property(player)[source]
buy_property_after_auction(player, property_data)[source]
calculate_house_difference(color_group_properties)[source]
calculate_repair_cost(player, house_cost, hotel_cost)[source]
calculate_space_rent(space, player)[source]
can_build_hotel(property_data, player)[source]
can_build_house(property_data, player)[source]
check_auction_end()[source]
check_game_over()[source]
check_property_group_completion(player_name)[source]
game_start()[source]
get_ai_auction_bid(player, property_data, current_bid)[source]
get_ai_bid(player, current_minimum, property_data)[source]
get_human_bid(player, current_minimum, property_data)[source]
get_winner()[source]
handle_ai_bankruptcy_prevention(player, amount_needed)[source]
handle_ai_turn(player)[source]
handle_bankruptcy(player)[source]
handle_birthday_collection(birthday_player)[source]
handle_buy_decision(player, decision)[source]
handle_card_draw(player, card_type)[source]
handle_jail(player)[source]
handle_payment_to_bank(player, amount, to_free_parking=False)[source]
handle_rent_payment(landing_player, property_data)[source]
handle_repair_assessment(player, house_cost, hotel_cost)[source]
handle_space(player)[source]
is_game_over()[source]
mortgage_property(property_data, player)[source]
move_to_next_bidder()[source]
pay_from_bank(player, amount)[source]
pay_to_bank(player, amount)[source]
placeBids(player_list, property_data)[source]
play_turn()[source]
process_ai_property_purchase(player, property_data)[source]
process_auction_bid(player, bid_amount)[source]
process_auction_pass(player)[source]
remove_player(player_name, voluntary=False)[source]
sell_hotel(property_data, player)[source]
sell_house(property_data, player)[source]
try_leave_jail(player, dice1, dice2)[source]
unmortgage_property(property_data, player)[source]
validate_bank_transaction(amount)[source]
