Game Renderer Module

The Game Renderer module is the primary engine for visualizing the Property Tycoon game during active play. It acts as an interface between the game’s internal state (managed by Game, GameLogic, Board, Player, etc.) and the visual output presented to the user via the Pygame display surface. Its core responsibility is to accurately and efficiently draw all necessary game elements frame by frame, including static components like the board, dynamic elements like player tokens and dice, and context-sensitive UI panels for actions like buying, auctioning, or managing properties.

High-Level Design

Use Case Diagram (What it Renders)

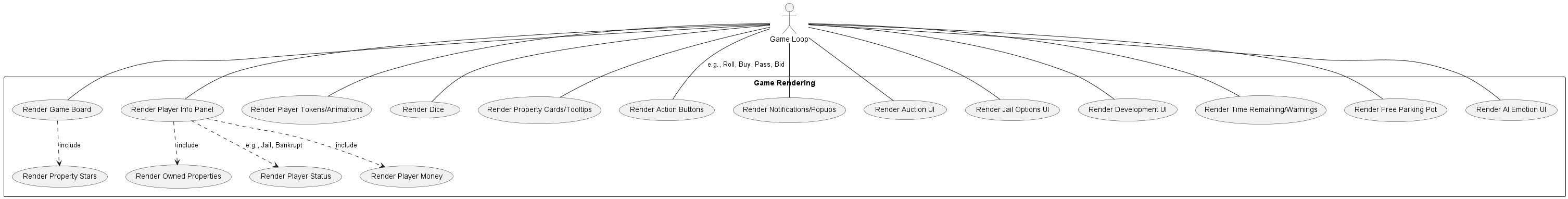

This diagram outlines the key visual components and information that the GameRenderer is tasked with displaying during a typical game session. The “Game Loop” represents the main process invoking the renderer.

Dependency Diagram

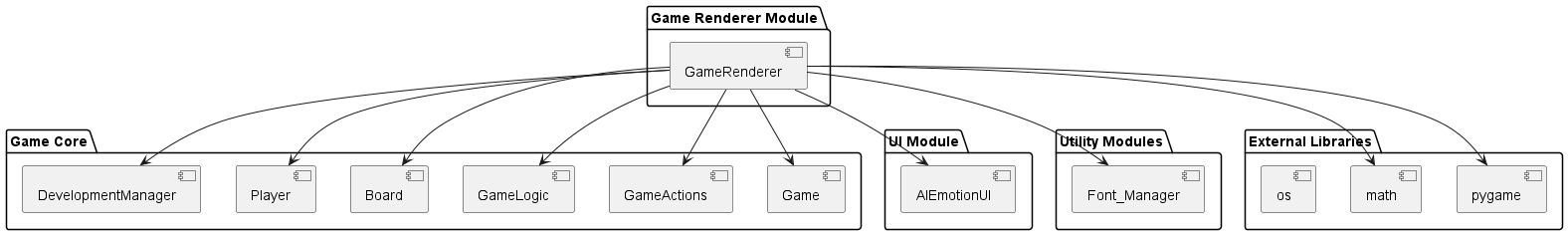

This diagram illustrates the main modules and libraries that the GameRenderer relies upon to function. It highlights its central role in accessing game state and utilizing utility modules for presentation.

@startuml
skinparam package {
BackgroundColor white
BorderColor black
ArrowColor black
}

package "Game Renderer Module" {
[GameRenderer]
}

package "Game Core" {
[Game]
[GameActions]
[GameLogic]
[Board]
[Player]
[DevelopmentManager]
}

package "UI Module" {
[AIEmotionUI]
}

package "Utility Modules" {
[Font_Manager]
}

package "External Libraries" {
[pygame]
[math]
[os]
}

[GameRenderer] --> [Game]
[GameRenderer] --> [GameActions]
[GameRenderer] --> [GameLogic]
[GameRenderer] --> [Board]
[GameRenderer] --> [Player]
[GameRenderer] --> [DevelopmentManager]
[GameRenderer] --> [AIEmotionUI]
[GameRenderer] --> [Font_Manager]
[GameRenderer] --> [pygame]
[GameRenderer] --> [math]
@enduml — Game Renderer Dependencies

Simplified State-Based Rendering Logic

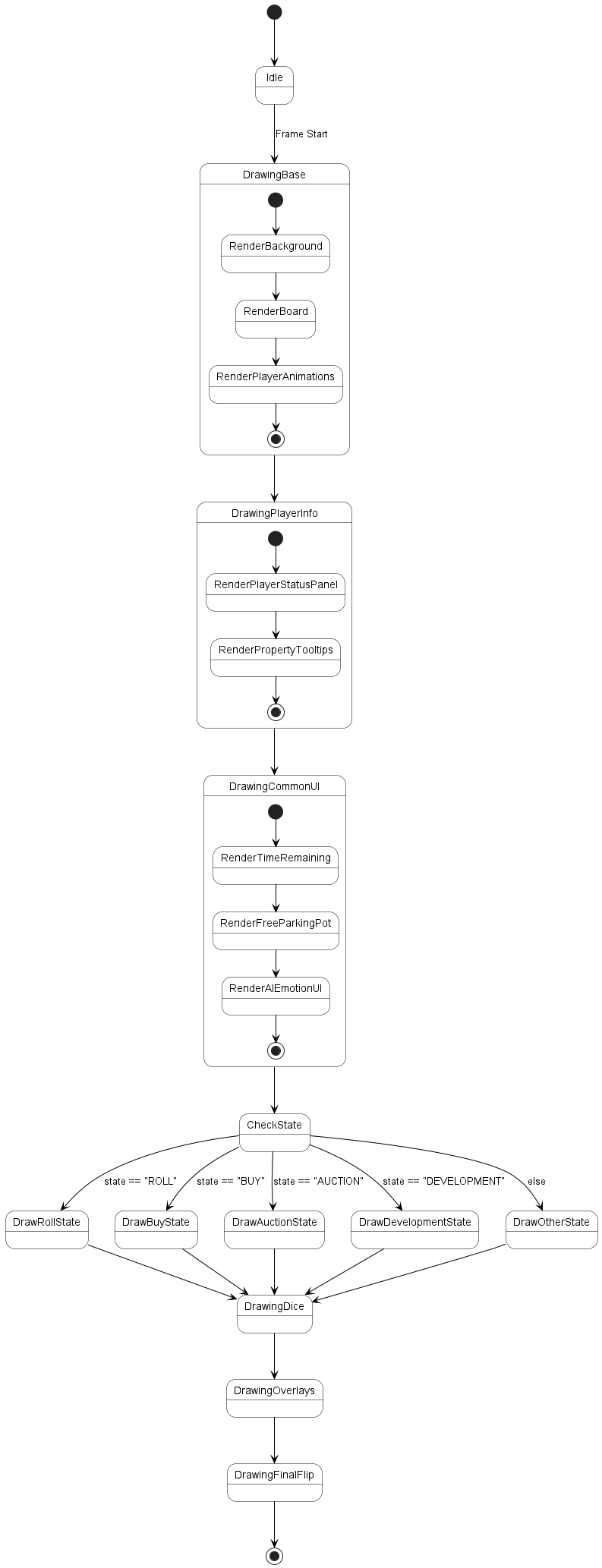

The main draw() method adapts its output based significantly on the current game.state. This state diagram shows the primary rendering paths determined by the game state.

@startuml
skinparam state {
BackgroundColor white
BorderColor black
ArrowColor black
}

[*] --> Idle
Idle --> DrawingBase : Frame Start
DrawingBase --> DrawingPlayerInfo
DrawingPlayerInfo --> DrawingCommonUI

DrawingCommonUI --> CheckState

CheckState --> DrawRollState : state == "ROLL"
CheckState --> DrawBuyState : state == "BUY"
CheckState --> DrawAuctionState : state == "AUCTION"
CheckState --> DrawDevelopmentState : state == "DEVELOPMENT"
CheckState --> DrawOtherState : else

DrawRollState --> DrawingDice
DrawBuyState --> DrawingDice
DrawAuctionState --> DrawingDice
DrawDevelopmentState --> DrawingDice
DrawOtherState --> DrawingDice

DrawingDice --> DrawingOverlays
DrawingOverlays --> DrawingFinalFlip
DrawingFinalFlip --> [*]

state DrawingBase {
[*] --> RenderBackground
RenderBackground --> RenderBoard
RenderBoard --> RenderPlayerAnimations
RenderPlayerAnimations --> [*]
}

state DrawingPlayerInfo {
[*] --> RenderPlayerStatusPanel
RenderPlayerStatusPanel --> RenderPropertyTooltips
RenderPropertyTooltips --> [*]
}

state DrawingCommonUI {
[*] --> RenderTimeRemaining
RenderTimeRemaining --> RenderFreeParkingPot
RenderFreeParkingPot --> RenderAIEmotionUI
RenderAIEmotionUI --> [*]
}
@enduml — State Diagram: GameRenderer Draw Logic by Game State

Detailed Design

Class Diagram

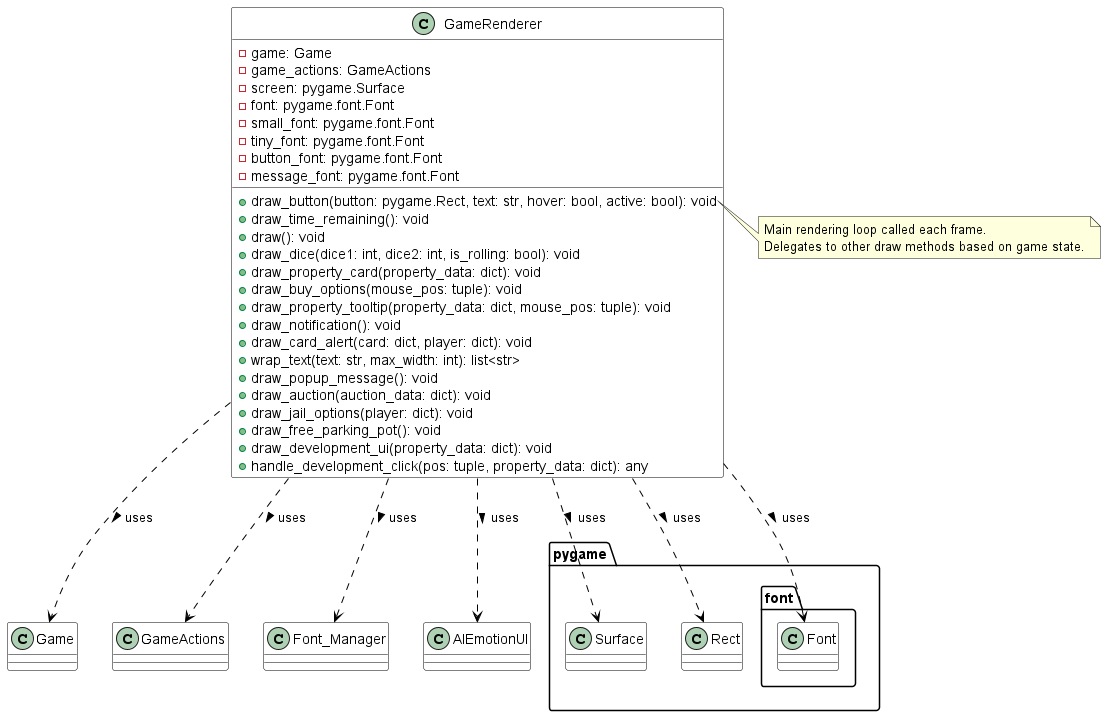

This diagram details the structure of the GameRenderer class itself, showing its attributes (dependencies and fonts) and its public methods responsible for drawing specific elements.

@startuml
skinparam class {
BackgroundColor white
BorderColor black
ArrowColor black
}

class GameRenderer {
- game: Game
- game_actions: GameActions
- screen: pygame.Surface
- font: pygame.font.Font
- small_font: pygame.font.Font
- tiny_font: pygame.font.Font
- button_font: pygame.font.Font
- message_font: pygame.font.Font
+ draw_button(button: pygame.Rect, text: str, hover: bool, active: bool): void
+ draw_time_remaining(): void
+ draw(): void
+ draw_dice(dice1: int, dice2: int, is_rolling: bool): void
+ draw_property_card(property_data: dict): void
+ draw_buy_options(mouse_pos: tuple): void
+ draw_property_tooltip(property_data: dict, mouse_pos: tuple): void
+ draw_notification(): void
+ draw_card_alert(card: dict, player: dict): void
+ wrap_text(text: str, max_width: int): list<str>
+ draw_popup_message(): void
+ draw_auction(auction_data: dict): void
+ draw_jail_options(player: dict): void
+ draw_free_parking_pot(): void
+ draw_development_ui(property_data: dict): void
+ handle_development_click(pos: tuple, property_data: dict): any
}

note right of GameRenderer::draw
Main rendering loop called each frame.
Delegates to other draw methods based on game state.
end note

GameRenderer ..> Game : uses >
GameRenderer ..> GameActions : uses >
GameRenderer ..> Font_Manager : uses >
GameRenderer ..> "pygame.Surface" : uses >
GameRenderer ..> "pygame.Rect" : uses >
GameRenderer ..> "pygame.font.Font" : uses >
GameRenderer ..> AIEmotionUI : uses >
@enduml — GameRenderer Class Diagram

Activity Diagram: Drawing Dice

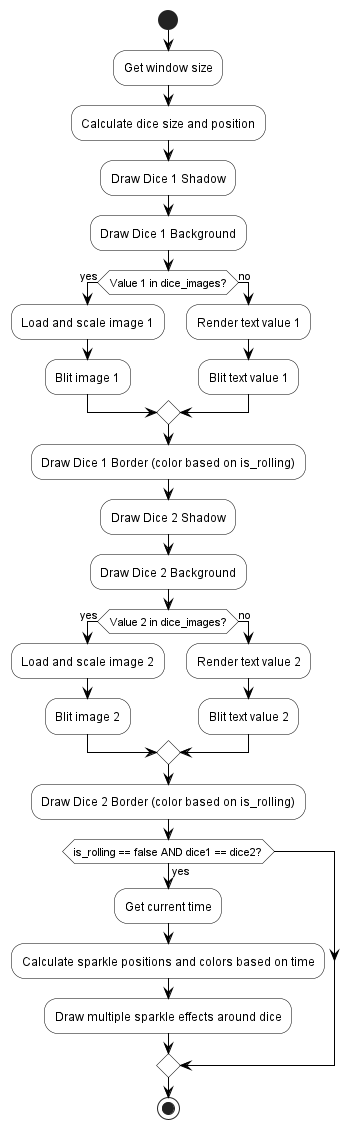

This diagram details the logic within the draw_dice method, including handling the rolling animation state and the special effect for doubles.

@startuml
skinparam activity {
BackgroundColor white
BorderColor black
ArrowColor black
}

start
:Get window size;
:Calculate dice size and position;
:Draw Dice 1 Shadow;
:Draw Dice 1 Background;
if (Value 1 in dice_images?) then (yes)
:Load and scale image 1;
:Blit image 1;
else (no)
:Render text value 1;
:Blit text value 1;
endif
:Draw Dice 1 Border (color based on is_rolling);

:Draw Dice 2 Shadow;
:Draw Dice 2 Background;
if (Value 2 in dice_images?) then (yes)
:Load and scale image 2;
:Blit image 2;
else (no)
:Render text value 2;
:Blit text value 2;
endif
:Draw Dice 2 Border (color based on is_rolling);

if (is_rolling == false AND dice1 == dice2?) then (yes)
:Get current time;
:Calculate sparkle positions and colors based on time;
:Draw multiple sparkle effects around dice;
endif
stop
@enduml — Activity Diagram: draw_dice Method

Sequence Diagrams

Main Draw Sequence

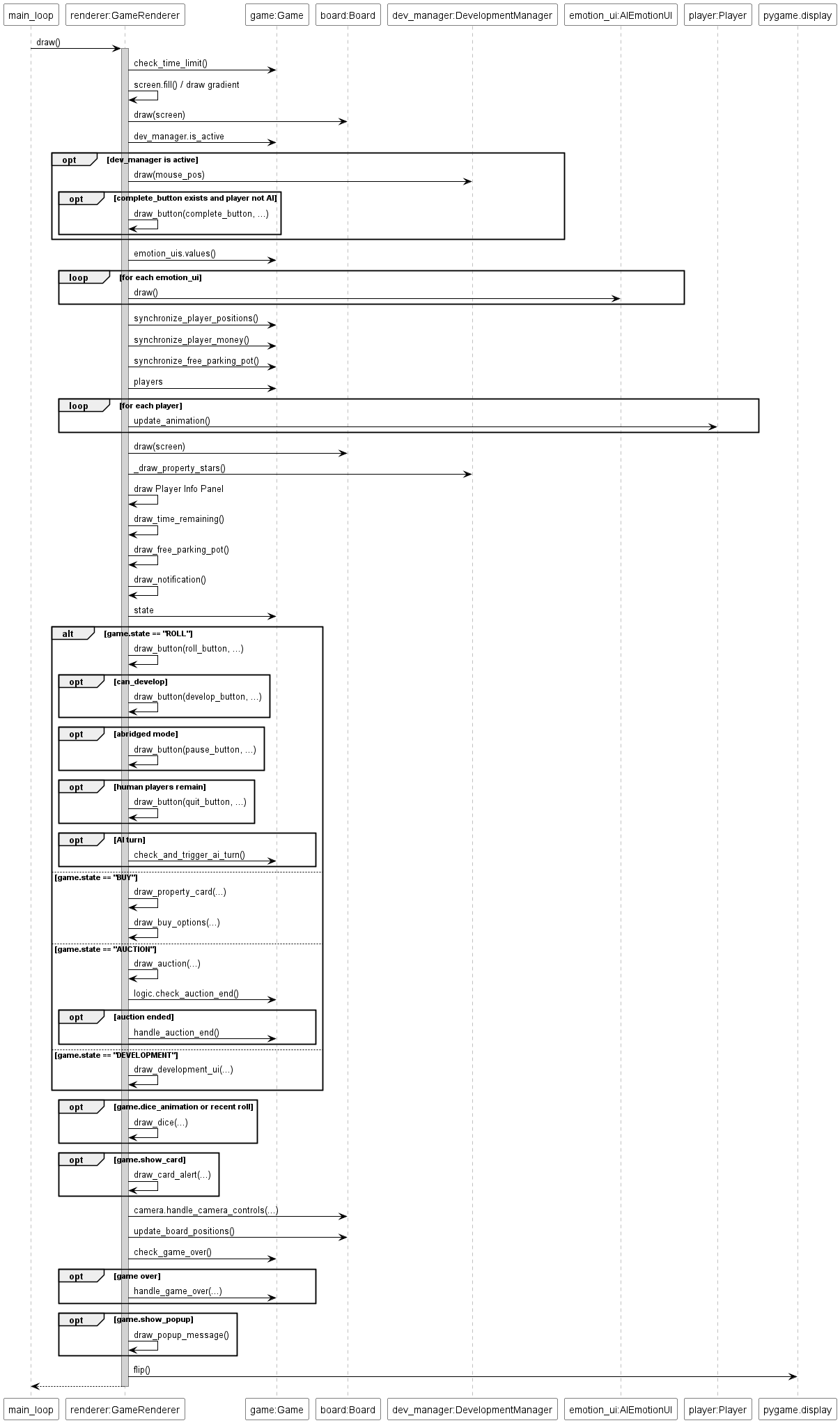

Illustrates the high-level flow of execution when the main GameRenderer.draw() method is invoked by the game loop.

@startuml
skinparam sequence {
ParticipantBackgroundColor white
ParticipantBorderColor black
ArrowColor black
LifeLineBorderColor gray
LifeLineBackgroundColor lightgray
}

participant "main_loop" as Loop
participant "renderer:GameRenderer" as Renderer
participant "game:Game" as Game
participant "board:Board" as Board
participant "dev_manager:DevelopmentManager" as DevMan
participant "emotion_ui:AIEmotionUI" as EmotionUI
participant "player:Player" as Player

Loop -> Renderer : draw()
activate Renderer
Renderer -> Game : check_time_limit()
Renderer -> Renderer : screen.fill() / draw gradient
Renderer -> Board : draw(screen)
Renderer -> Game : dev_manager.is_active
opt dev_manager is active
Renderer -> DevMan : draw(mouse_pos)
opt complete_button exists and player not AI
Renderer -> Renderer : draw_button(complete_button, ...)
end
end

Renderer -> Game : emotion_uis.values()
loop for each emotion_ui
Renderer -> EmotionUI : draw()
end

Renderer -> Game : synchronize_player_positions()
Renderer -> Game : synchronize_player_money()
Renderer -> Game : synchronize_free_parking_pot()

Renderer -> Game : players
loop for each player
Renderer -> Player : update_animation()
end

Renderer -> Board : draw(screen)
Renderer -> DevMan : _draw_property_stars()

Renderer -> Renderer : draw Player Info Panel
Renderer -> Renderer : draw_time_remaining()
Renderer -> Renderer : draw_free_parking_pot()
Renderer -> Renderer : draw_notification()

Renderer -> Game : state
alt game.state == "ROLL"
Renderer -> Renderer : draw_button(roll_button, ...)
opt can_develop
Renderer -> Renderer : draw_button(develop_button, ...)
end
opt abridged mode
Renderer -> Renderer : draw_button(pause_button, ...)
end
opt human players remain
Renderer -> Renderer : draw_button(quit_button, ...)
end
opt AI turn
Renderer -> Game : check_and_trigger_ai_turn()
end
else game.state == "BUY"
Renderer -> Renderer : draw_property_card(...)
Renderer -> Renderer : draw_buy_options(...)
else game.state == "AUCTION"
Renderer -> Renderer : draw_auction(...)
Renderer -> Game : logic.check_auction_end()
opt auction ended
Renderer -> Game : handle_auction_end()
end
else game.state == "DEVELOPMENT"
Renderer -> Renderer : draw_development_ui(...)
end

opt game.dice_animation or recent roll
Renderer -> Renderer : draw_dice(...)
end

opt game.show_card
Renderer -> Renderer : draw_card_alert(...)
end

Renderer -> Board : camera.handle_camera_controls(...)
Renderer -> Board : update_board_positions()

Renderer -> Game : check_game_over()
opt game over
Renderer -> Game : handle_game_over(...)
end

opt game.show_popup
Renderer -> Renderer : draw_popup_message()
end

Renderer -> pygame.display : flip()
Renderer --> Loop
deactivate Renderer
@enduml — Sequence Diagram: Main Draw Call

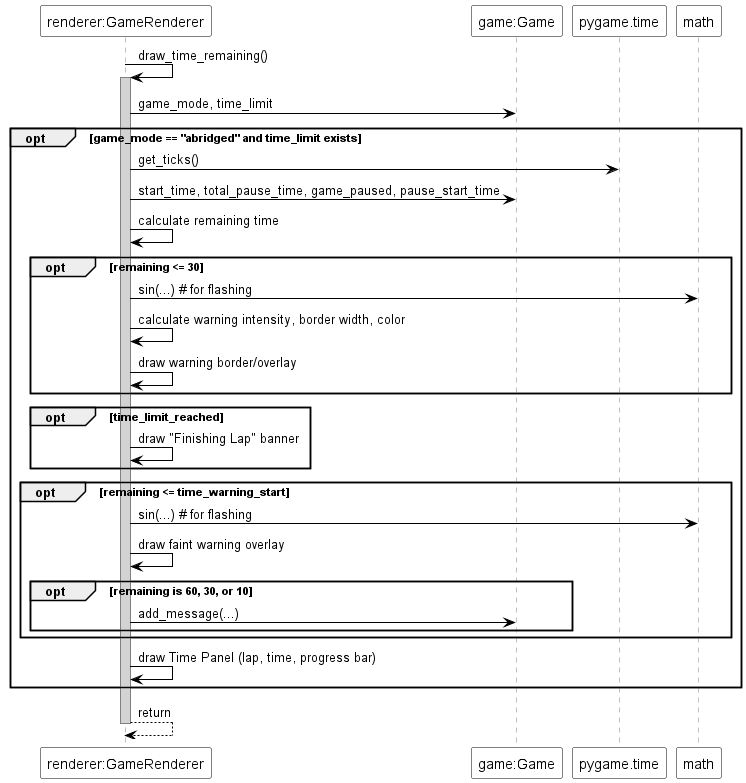

Drawing Time Remaining with Warning

Shows the specific logic executed within the draw_time_remaining method, particularly when the game timer is low, triggering visual warnings.

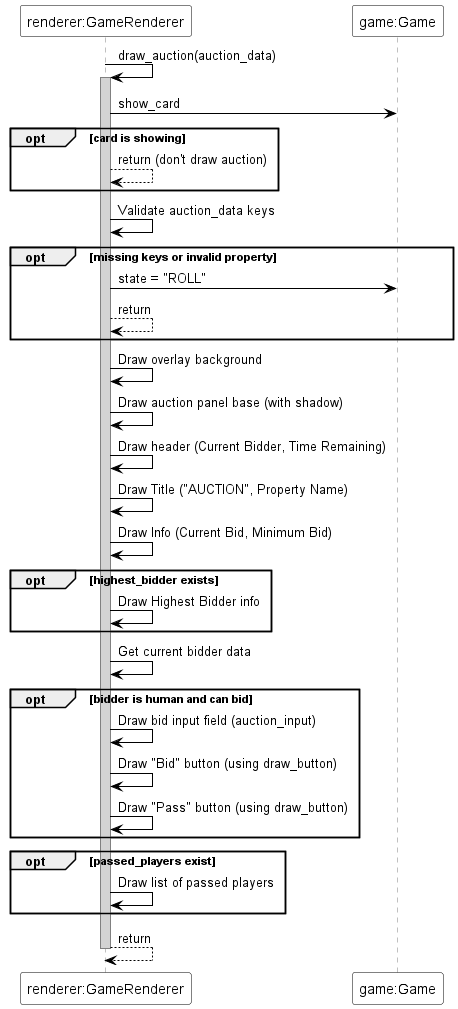

Drawing Auction UI

Details the steps for rendering the auction interface when the game is in the “AUCTION” state.

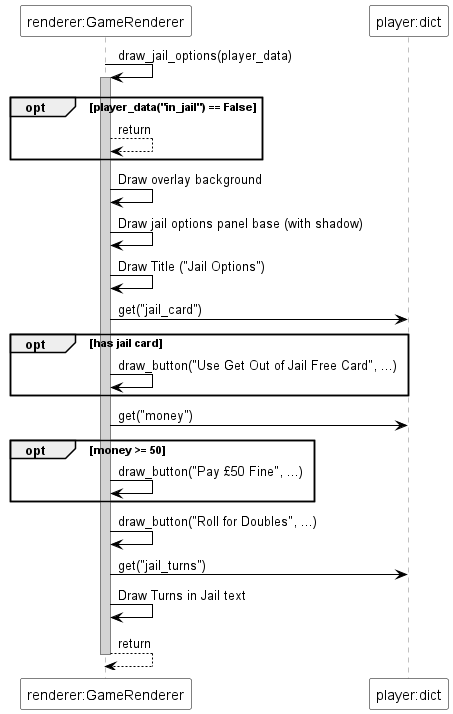

Drawing Jail Options

Shows the process for displaying the available actions to a player currently in jail.

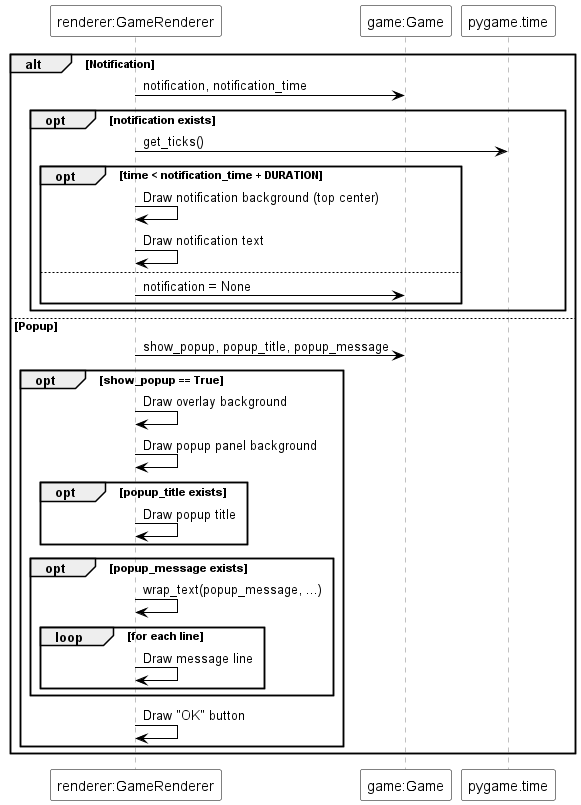

Drawing Notification/Popup

Illustrates how temporary messages (notifications or popups) are displayed over the main game view.

Key Classes Overview

GameRenderer: The central class orchestrating the drawing process. It holds references to the game state (Game, GameActions), the display surface (screen), and various fonts (Font_Manager). It contains numerous draw_ methods, each responsible for rendering a specific visual component (e.g., draw_dice, draw_player_info_panel implicitly, draw_auction, draw_property_card). The main draw() method acts as the primary entry point, called each frame, which then delegates rendering tasks to the appropriate sub-methods based on the current game.state and other conditions.

API Documentation

class src.GameRenderer.GameRenderer(game, game_actions)[source]

Bases: object

draw()[source]

draw_auction(auction_data)[source]

draw_button(button, text, hover=False, active=True)[source]

draw_buy_options(mouse_pos)[source]

draw_card_alert(card, player)[source]

draw_development_ui(property_data)[source]

draw_dice(dice1, dice2, is_rolling)[source]

draw_free_parking_pot()[source]

draw_jail_options(player)[source]

draw_notification()[source]

draw_popup_message()[source]

draw_property_card(property_data)[source]

draw_property_tooltip(property_data, mouse_pos)[source]

draw_time_remaining()[source]

handle_development_click(pos, property_data)[source]

wrap_text(text, max_width)[source]
