Cards Module

This module defines the structure and behavior of the Pot Luck and Opportunity Knocks cards used in the game. It includes classes for individual cards and the decks that manage them, including drawing, discarding, and reshuffling.

class src.Cards.Card(text, action, card_type)[source]

Bases: object

class src.Cards.CardDeck(card_type)[source]

Bases: object

draw_card()[source]
get_discard_count()[source]
get_remaining_count()[source]
initialize_deck()[source]
peek_top_card()[source]
return_card(card, to_bottom=True)[source]
return_jail_card(card_type)[source]
class src.Cards.CardType(*values)[source]

Bases: Enum

OPPORTUNITY_KNOCKS = 'opportunity knocks'
POT_LUCK = 'pot luck'

High-Level Design

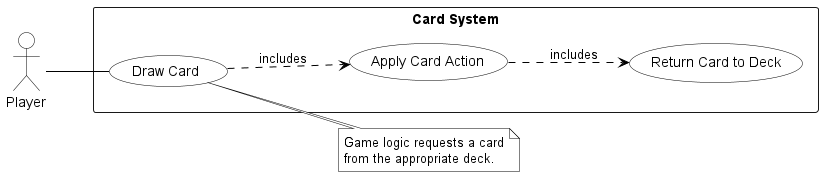

Use Case Diagram

Shows the basic interaction with the card system from a game perspective.

@startuml skinparam usecase { BackgroundColor white BorderColor black ArrowColor black } skinparam actor { BackgroundColor white BorderColor black } skinparam note { BackgroundColor white BorderColor black } left to right direction actor Player rectangle "Card System" { usecase "Draw Card" as Draw usecase "Apply Card Action" as Apply usecase "Return Card to Deck" as Return } Player -- Draw Draw ..> Apply : includes Apply ..> Return : includes note right of Draw Game logic requests a card from the appropriate deck. end note @enduml

Card System Use Cases

Detailed Design

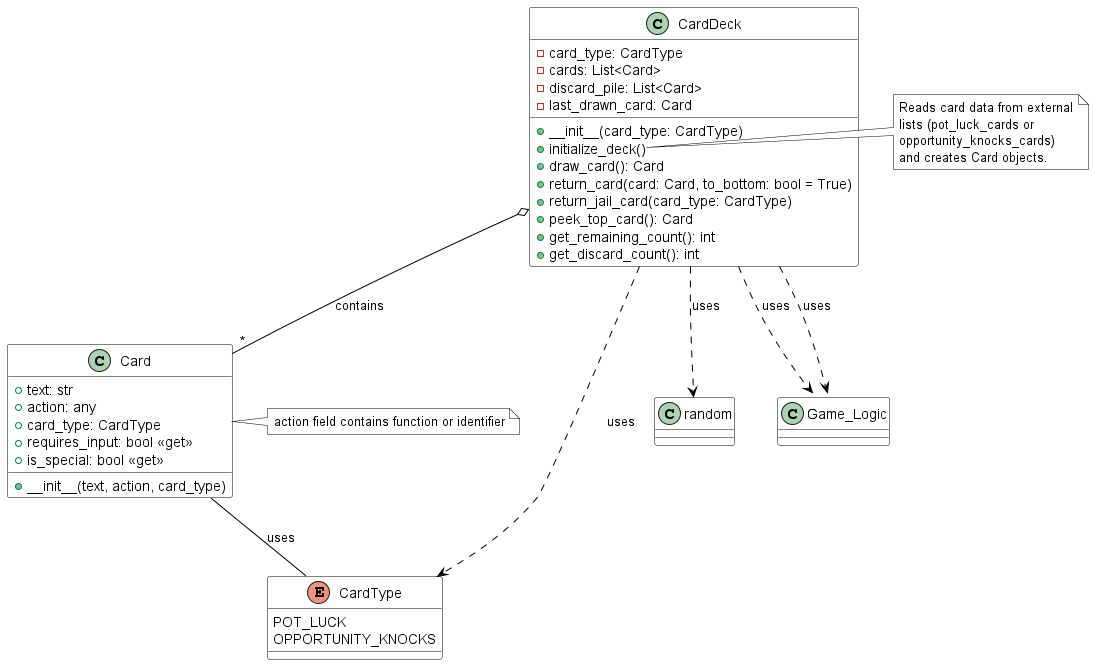

Class Diagram

Shows the classes involved in the card system and their relationships.

@startuml skinparam class { BackgroundColor white BorderColor black ArrowColor black } skinparam note { BackgroundColor white BorderColor black } enum CardType { POT_LUCK OPPORTUNITY_KNOCKS } class Card { + text: str + action: any + card_type: CardType + requires_input: bool <<get>> + is_special: bool <<get>> + __init__(text, action, card_type) } note right of Card: action field contains function or identifier class CardDeck { - card_type: CardType - cards: List<Card> - discard_pile: List<Card> - last_drawn_card: Card + __init__(card_type: CardType) + initialize_deck() + draw_card(): Card + return_card(card: Card, to_bottom: bool = True) + return_jail_card(card_type: CardType) + peek_top_card(): Card + get_remaining_count(): int + get_discard_count(): int } CardDeck o-- "*" Card : contains CardDeck ..> CardType : uses Card -- CardType : uses CardDeck ..> random : uses CardDeck ..> Game_Logic::pot_luck_cards : uses CardDeck ..> Game_Logic::opportunity_knocks_cards : uses note right of CardDeck::initialize_deck Reads card data from external lists (pot_luck_cards or opportunity_knocks_cards) and creates Card objects. end note @enduml

Cards Class Structure

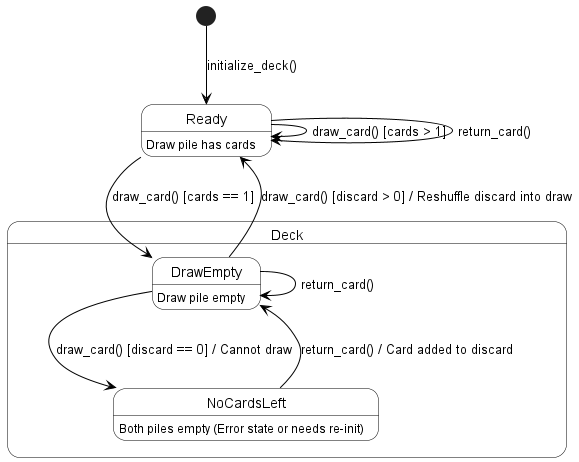

State Diagram (CardDeck)

Illustrates the different states a CardDeck can be in regarding its draw and discard piles.

@startuml skinparam state { BackgroundColor white BorderColor black ArrowColor black } [*] --> Ready : initialize_deck() state Deck { state Ready : Draw pile has cards state DrawEmpty : Draw pile empty state NoCardsLeft : Both piles empty (Error state or needs re-init) Ready --> Ready : draw_card() [cards > 1] Ready --> DrawEmpty : draw_card() [cards == 1] Ready --> Ready : return_card() DrawEmpty --> Ready : draw_card() [discard > 0] / Reshuffle discard into draw DrawEmpty --> DrawEmpty : return_card() DrawEmpty --> NoCardsLeft : draw_card() [discard == 0] / Cannot draw NoCardsLeft --> DrawEmpty : return_card() / Card added to discard } @enduml

CardDeck State Diagram

Sequence Diagrams

Deck Initialization

Shows the process of creating and shuffling a new deck.

@startuml skinparam sequence { ParticipantBackgroundColor white ParticipantBorderColor black ArrowColor black LifeLineBorderColor gray LifeLineBackgroundColor lightgray } participant "deck:CardDeck" as Deck participant "Card" as CardClass <<static>> participant "random" as Random <<static>> participant "card_data" as Data <<external>> activate Deck Deck -> Deck : initialize_deck() activate Deck alt deck.card_type == POT_LUCK Deck -> Data : pot_luck_cards else deck.card_type == OPPORTUNITY_KNOCKS Deck -> Data : opportunity_knocks_cards end Data --> Deck : card_info_list loop for card_info in card_info_list Deck -> CardClass : create Card(text, action, type) CardClass --> Deck : new_card Deck -> Deck : self.cards.append(new_card) end Deck -> Random : shuffle(self.cards) Deck --> Deck : shuffled cards deactivate Deck deactivate Deck @enduml

Sequence Diagram: Deck Initialization

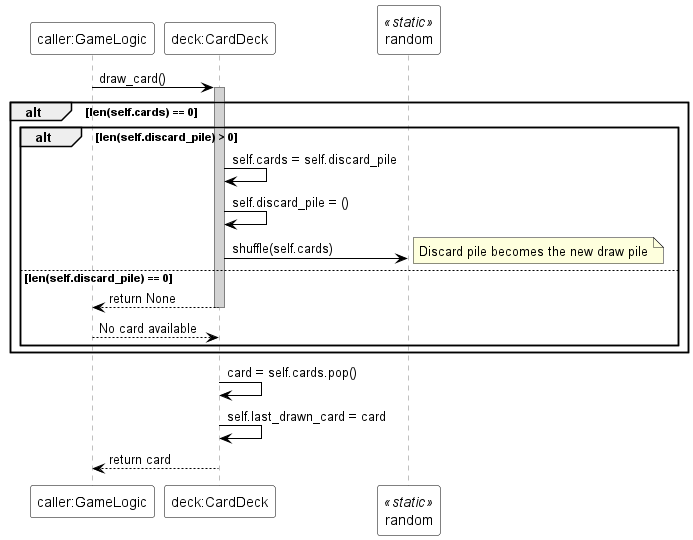

Drawing a Card

Illustrates the logic when a card is drawn, including handling an empty draw pile.

@startuml skinparam sequence { ParticipantBackgroundColor white ParticipantBorderColor black ArrowColor black LifeLineBorderColor gray LifeLineBackgroundColor lightgray } participant "caller:GameLogic" as Caller participant "deck:CardDeck" as Deck participant "random" as Random <<static>> Caller -> Deck : draw_card() activate Deck alt len(self.cards) == 0 alt len(self.discard_pile) > 0 Deck -> Deck : self.cards = self.discard_pile Deck -> Deck : self.discard_pile = () Deck -> Random : shuffle(self.cards) note right: Discard pile becomes the new draw pile else len(self.discard_pile) == 0 Deck --> Caller : return None deactivate Deck return No card available end end Deck -> Deck : card = self.cards.pop() Deck -> Deck : self.last_drawn_card = card Deck --> Caller : return card deactivate Deck @enduml

Sequence Diagram: Card Drawing Sequence

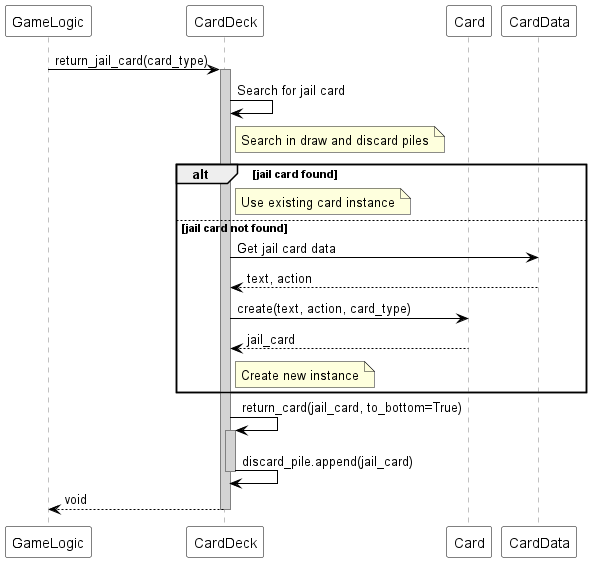

Returning a “Get Out of Jail Free” Card

Shows the special handling for returning this specific type of card.

@startuml skinparam sequence { ParticipantBackgroundColor white ParticipantBorderColor black ArrowColor black LifeLineBorderColor gray LifeLineBackgroundColor lightgray } participant "GameLogic" as Caller participant "CardDeck" as Deck participant "Card" as CardClass participant "CardData" as Data Caller -> Deck : return_jail_card(card_type) activate Deck Deck -> Deck : Search for jail card note right of Deck : Search in draw and discard piles alt jail card found note right of Deck : Use existing card instance else jail card not found Deck -> Data : Get jail card data Data --> Deck : text, action Deck -> CardClass : create(text, action, card_type) CardClass --> Deck : jail_card note right of Deck : Create new instance end Deck -> Deck : return_card(jail_card, to_bottom=True) activate Deck Deck -> Deck : discard_pile.append(jail_card) deactivate Deck Deck --> Caller : void deactivate Deck @enduml

Sequence Diagram: Returning Jail Free Card

Key Classes Overview

  • CardType: An Enum defining the two types of decks: POT_LUCK and OPPORTUNITY_KNOCKS.

  • Card: Represents a single card with its display text, associated action (which likely corresponds to a function or identifier in the game logic), and card_type. It also determines if the card requires_input or is is_special based on keywords in its text.

  • CardDeck: Manages a collection of Card objects for a specific card_type. It handles initialization (reading from external data and shuffling), drawing cards (including reshuffling the discard pile when the draw pile is empty), returning used cards to the discard pile, and specifically handling the return of “Get Out of Jail Free” cards.
