Board Module

This module defines the Board class, responsible for managing and drawing the visual representation of the Property Tycoon game board, including player tokens, property ownership indicators, and the message log. It also handles camera controls like zooming and panning.

class src.Board.Board(players)[source]

Bases: object

add_message(text)[source]

board_to_screen(x, y)[source]

draw(screen)[source]

draw_player(screen, player, rect, index)[source]

get_property_group(position)[source]

get_property_position(position)[source]

get_space(position)[source]

property_clicked(pos)[source]

update_board_positions()[source]

update_offset(dx, dy)[source]

update_ownership(properties_data)[source]

class src.Board.CameraControls[source]

Bases: object

handle_camera_controls(keys)[source]

Diagrams

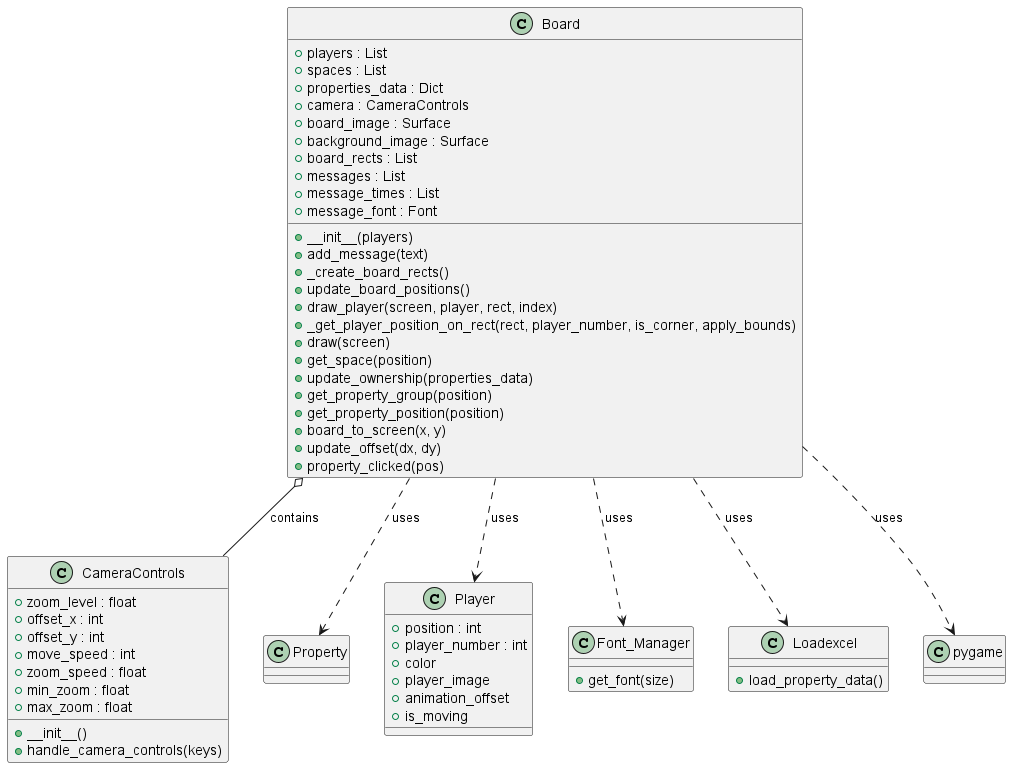

Board Class Structure

$class Board { + players : List + spaces : List + properties_data : Dict + camera : CameraControls + board_image : Surface + background_image : Surface + board_rects : List + messages : List + message_times : List + message_font : Font + __init__(players) + add_message(text) + _create_board_rects() + update_board_positions() + draw_player(screen, player, rect, index) + _get_player_position_on_rect(rect, player_number, is_corner, apply_bounds) + draw(screen) + get_space(position) + update_ownership(properties_data) + get_property_group(position) + get_property_position(position) + board_to_screen(x, y) + update_offset(dx, dy) + property_clicked(pos) } class CameraControls { + zoom_level : float + offset_x : int + offset_y : int + move_speed : int + zoom_speed : float + min_zoom : float + max_zoom : float + __init__() + handle_camera_controls(keys) } class Property { } class Player { + position : int + player_number : int + color + player_image + animation_offset + is_moving } class Font_Manager { + get_font(size) } class Loadexcel { + load_property_data() } Board o-- CameraControls : contains Board ..> Player : uses Board ..> Property : uses Board ..> Font_Manager : uses Board ..> Loadexcel : uses Board ..> pygame : uses$

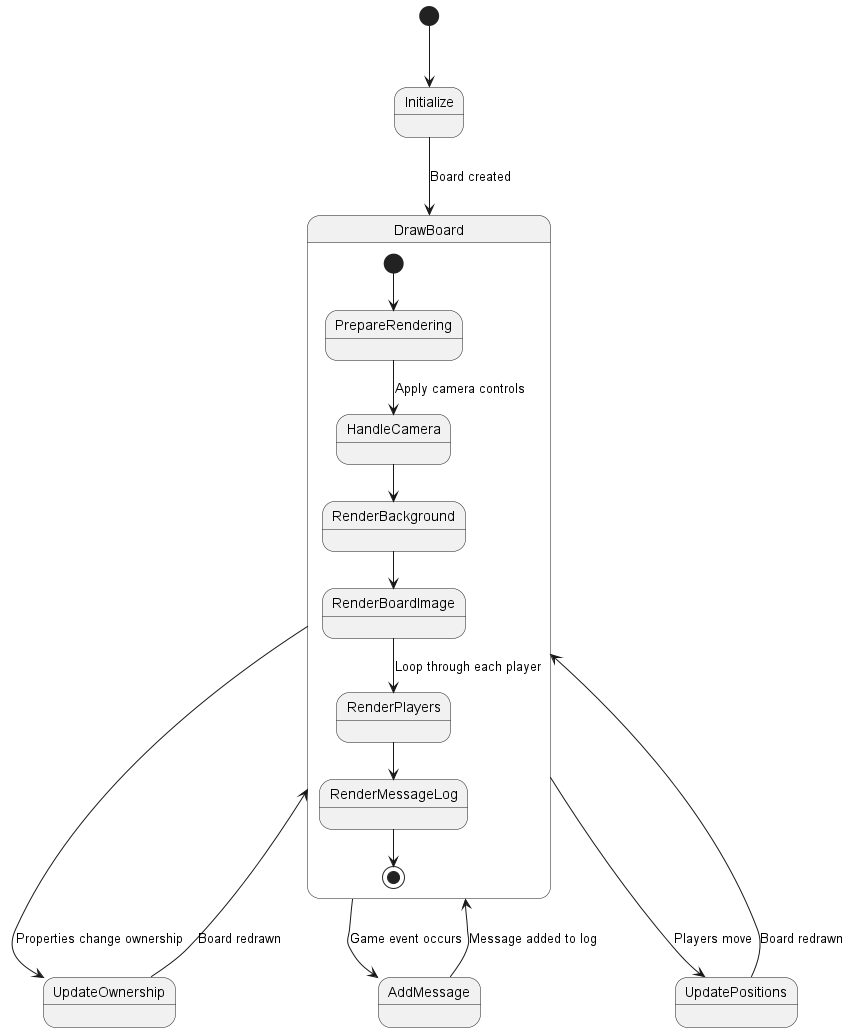

Board State Flow

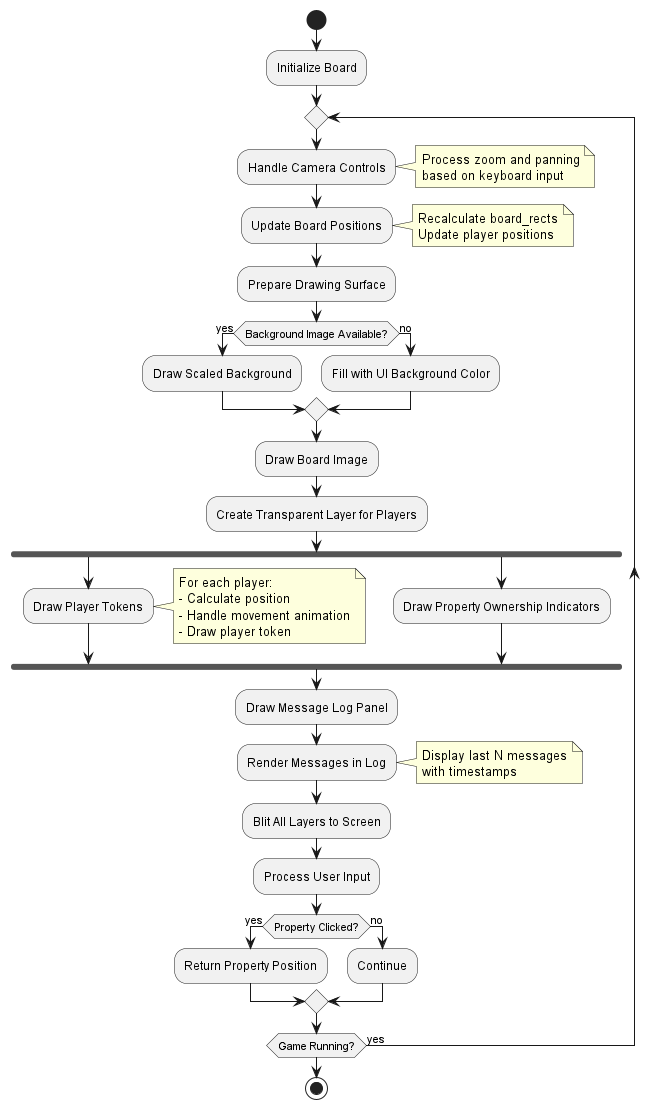

Board Drawing Process Flow Chart

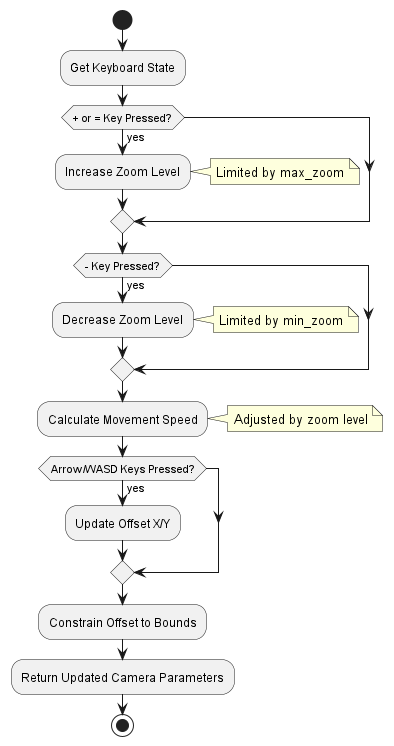

Board Camera Control Flow
